ASTM A335 Gr P5 Alloy Steel Studded Finned Tube for Refinery Heating Furnace

Datos del producto:

Lugar de origen:	PORCELANA
Nombre de la marca:	YUHONG
Certificación:	ABS, GL, DNV, NK, PED, AD2000, CCS, ISO 9001-2008
Número de modelo:	ASTM A335 GR P5 Tubo con aletas

Pago y Envío Términos:

Cantidad de orden mínima:	1
Precio:	1-200000 USD
Detalles de empaquetado:	Estuche de madera de capas con marco de hierro
Tiempo de entrega:	30-60 días
Condiciones de pago:	T/T, L/C
Capacidad de la fuente:	1500 toneladas/mes

Contacto

Todos los productos

Tubo sin costura de acero inoxidable (290)

Tubo inconsútil de acero inoxidable (277)

Tubería de acero inoxidable a dos caras (127)

Tubo de acero inoxidable del duplex (29)

Tubo de aguja (107)

Tubo de aleta (631)

intercambiador de calor (17)

tubo del cambiador de calor (424)

Envase de tubos para intercambiadores de calor (37)

Cambiador de calor Tubesheet (116)

bafle del cambiador de calor (36)

Frío de aire (8)

Contenedor de presión (4)

tubo soldado con autógena de acero inoxidable (57)

Tubo soldado con autógena del acero inoxidable (114)

Tubo de la aleación de níquel (261)

Tubo de la aleación de níquel (79)

Tubo de la aleación de cobre (227)

Tubo del acero de aleación (184)

Tubo del titanio (10)

tubo recocido brillante (153)

Tubo de caldera (145)

colocación de acero (804)

Reborde de acero (590)

Las demás (391)

Partes de revestimiento (7)

Descripción detallada del producto

Producto:	Tubo de aletas / tubo de aletas	Tipo de tubo de aleta:	Tubo de aleta con tachuelas
Estándar de los tubos con aletas:	Las especificaciones de la norma ASTM A335	Material de los tubos con aletas:	Acero de aleación P5
Material de aleta:	Generalmente lo mismo con el tubo base	Embalaje de tubo de aleta:	Estuche de madera de capas con marco de hierro
Resaltar:	ASTM A335 Gr P5 alloy steel fin tube , studded finned tube for refinery , heating furnace finned tube

ASTM A335 Gr P5 Alloy Steel Studded Finned Tube for Refinery Heating Furnace

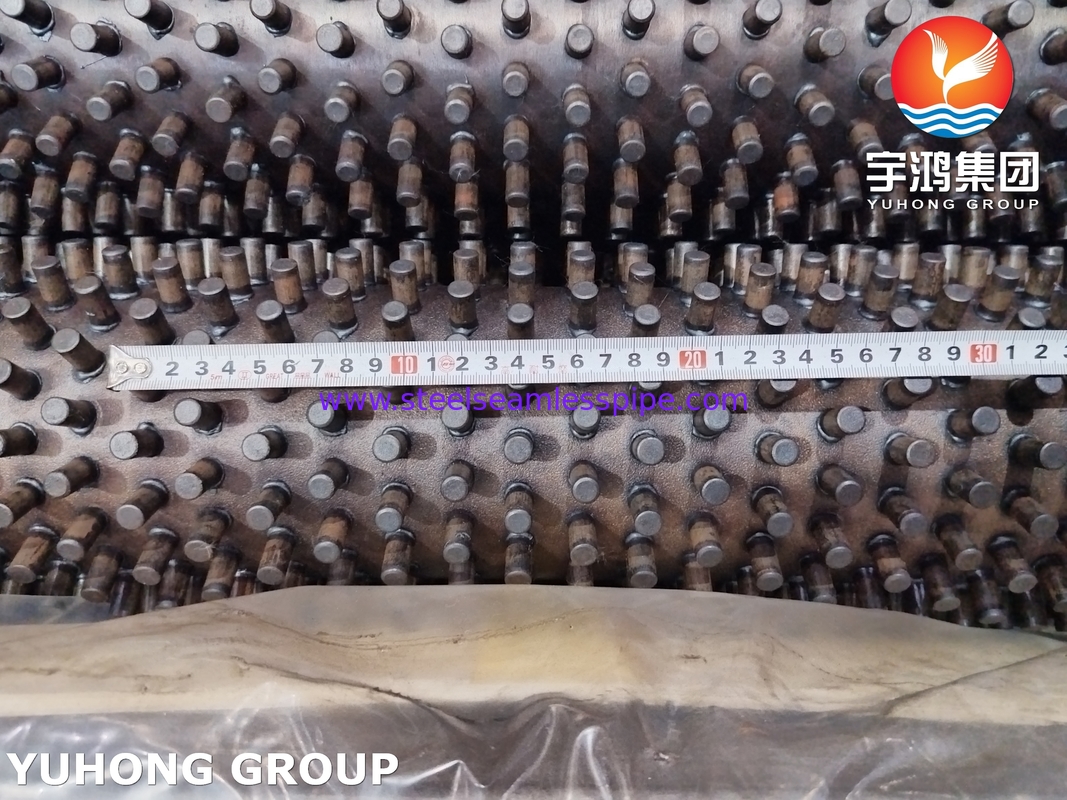

Studded Tubes / Pinned Tubes do not use continuous fins. Instead, a large number of needle-shaped (cylindrical) or head-shaped (similar to a nail cap) metal nails are welded onto the outer surface of the base tube through resistance welding and other methods.The core advantage of the studded tubes lies in its ability to provide reliable and efficient heat transfer even under extremely harsh conditions, especially in environments with high-intensity radiant heat, as well as severe scaling and wear.

Base tube material P5 is a grade of standard ASTM A335, A335 covers nominal wall and minimum wall seamless ferritic alloy-steel pipe intended for high-temperature service.

Chemical Composition (%)--max

Grade	C	Mn	P	Su	Si	Cr	Mo
P5	0.15	0.3-0.6	0.025	0.025	0.50	4.00-6.00	0.45-0.65

Mechanical Properties

Grade	Tensile Strength,min	Yield Strength (0.2%Offset,min)	Elongation-Longitudinal
P5	60ksi (415 MPa)	30ksi (205 MPa)	30%

Base Tube Inspections and Tests

1.Chemical Composition
2.Mechanical Properties
3.Flattening Test
4.Ultrasonic Test
5.Intergranular Corrosion Test
6.Hardness Test
7.Transverse Tensile Test (only for bimetallic tube),etc.

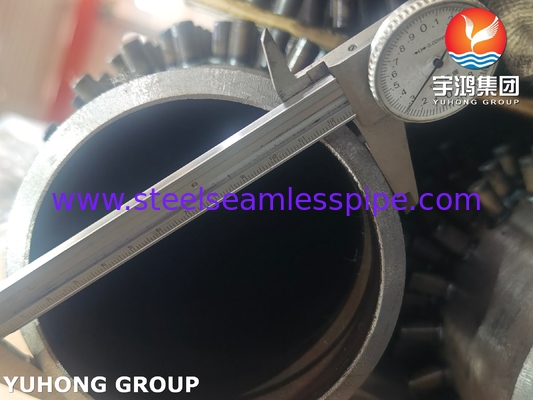

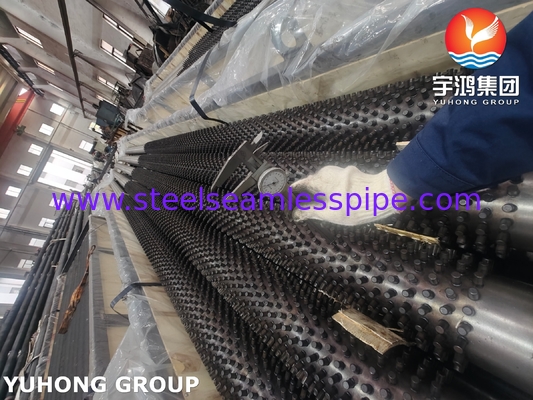

ASTM A335 Gr P5 Alloy Steel Studded Finned Tube for Refinery Heating Furnace 0

Main Application Fields

Core Application: The radiant section of heating furnaces in the oil refining and chemical industries is where the studded tubes are most commonly and importantly used.

Application scenario: In the radiant sections of distillation furnaces, coking furnaces, reforming furnaces in oil refineries, as well as ethylene cracking furnaces in the chemical industry.

In cases where there is severe wear and corrosion of the heat exchanger
Application scenarios: Immersed heat exchange tubes in fluidized bed reactors, flue gas waste heat recovery systems, etc.

A special chemical reactor that needs to enhance heat transfer
Application scenario: Certain types of fixed-bed reactors, or as components within the reactor.

Specifications For Various Types Of Finned Tubes

Type	Description	Base tube	Fin specification (mm)
Type	Description	O.D. (mm)	Fin pitch	Fin height	Fin thick
Embedded	G-type fin tueb	16-63	2.1~5	<17	~0.4
Extruded	Single metal combined metal	8-51	1.6~10	<17	0.2-0.4
	Low fin tube t-type fin tube	10-38	0.6~2	<1.6	~0.3
	Bamboo tube corrugated tube	16-51	8.0~30	<2.5	/
Wound	l/kl/ll type fin tube	16-63	2.1~5	<17	~0.4
String	String fin tube	25-38	2.1-3.5	<20	0.2-0.5
U-type	U-type tube	16-38	/	/	/
Welding	HF-welding fin tube	16-219	3~25	5~30	0.8-3
	H/HH type fin tube	25-63	8~30	<200	1.5-3.5
	Studed fin tube	25-219	8~30	5~35	5-20
