ASTM A106 GR.B With Cu-T2 Fin Embedded G Type Fin Tube, Offshore & Platform

Datos del producto:

Lugar de origen:	PORCELANA
Nombre de la marca:	YUHONG
Certificación:	ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Número de modelo:	ASTM A106 GR.B con FIN Cu-T2

Pago y Envío Términos:

Cantidad de orden mínima:	1 por ciento
Precio:	Negociable

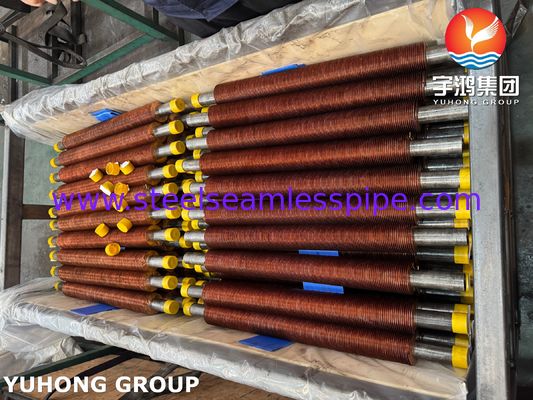

Detalles de empaquetado:	Casos de madera de pliegue con marcos de acero ((ambos extremos de las tuberías tienen tapas de plás
Tiempo de entrega:	15-20 días de trabajo
Condiciones de pago:	L/C, T/T
Capacidad de la fuente:	De acuerdo con los requisitos de los clientes

Contacto

Todos los productos

Tubo sin costura de acero inoxidable (290)

Tubo inconsútil de acero inoxidable (277)

Tubería de acero inoxidable a dos caras (127)

Tubo de acero inoxidable del duplex (29)

Tubo de aguja (107)

Tubo de aleta (631)

intercambiador de calor (17)

tubo del cambiador de calor (424)

Envase de tubos para intercambiadores de calor (37)

Cambiador de calor Tubesheet (116)

bafle del cambiador de calor (36)

Frío de aire (8)

Contenedor de presión (4)

tubo soldado con autógena de acero inoxidable (57)

Tubo soldado con autógena del acero inoxidable (114)

Tubo de la aleación de níquel (261)

Tubo de la aleación de níquel (79)

Tubo de la aleación de cobre (227)

Tubo del acero de aleación (184)

Tubo del titanio (10)

tubo recocido brillante (153)

Tubo de caldera (145)

colocación de acero (804)

Reborde de acero (590)

Las demás (391)

Partes de revestimiento (7)

Descripción detallada del producto

Nombre del producto:	Tipo integrado tubo de G de aleta	Especificación de tubo desnudo y material:	ASTM A106 Gr.B
Material de aleta:	Cuadros de trabajo	Tubo desnudo OD:	16-63 mm
Altura de la aleta:	＜ 17 mm	Grosor de la aleta:	~ 0.4 mm
Tono de aleta:	2.1-5m m	Solicitud:	Offshore/ Calentador/ Petroquímico/ intercambiador de calor
prueba:	HT/ET
Resaltar:	ASTM A106 GR.B fin tube , copper T2 embedded fin tube , offshore platform fin tube

YUHONG brand goods have been already exported to more than 85 countries With more than 35 years' experience, because of strict quality control policy, excellent sales service, delivery on time. YUHONG won more and more new clients and got more and more repeat orders from old clients, in YUHONG People's mind: Quality is First Important!

ASTM A106 GR.B With Cu-T2 Fin Embedded G Type Fin Tube, Offshore & Platform

This product is a high-performance, high-reliability composite finned tube engineered specifically for demanding offshore environments. It features a core structure of ASTM A106 GR.B high-strength seamless carbon steel as the base pipe, offering superior pressure-bearing capacity and ensuring structural integrity under high-temperature and high-pressure conditions. The Cu-T2 copper fins are permanently bonded to the base pipe via an advanced embedded manufacturing process.

This unique "Steel-Copper Composite" design delivers exceptional synergistic benefits:

The Steel Base Pipe provides the mechanical strength and ruggedness required to withstand wave-induced stresses, system pressures, and high temperatures.
The Copper Fins leverage their top-tier thermal conductivity to maximize heat transfer efficiency. Furthermore, they utilize the inherent superior corrosion resistance of copper to effectively combat the high-salinity, high-humidity marine atmosphere.

Consequently, this product is the ideal choice for various heat exchangers (such as crude oil heaters, seawater coolers, inert gas system coolers, etc.) on offshore oil & gas platforms, FPSOs, and other marine facilities. It is designed for long-term safe operation, maximized energy efficiency, and minimized lifecycle maintenance costs.

1.Chemical & Mechanical Properties

ASTM A106 Gr.B Chemical Composition (%)
C	Mn	P	S	Si	Cr	Cu	Mo	Ni	V
≤0.30%	0.29% ~ 1.06%	≤0.035%	≤0.035%	≥0.10%	≤ 0.40%	≤ 0.40%	≤ 0.15%	≤ 0.40%	≤ 0.08%

Cu-T2 Fin

T2 Copper is a grade of high-purity copper. Its key characteristic is that the combined content of Copper and Silver is not less than 99.90%, meaning the total of other impurity elements must be strictly controlled below 0.1%. It is renowned for its excellent electrical and thermal conductivity.

Mechanical Properties

Component

Mechanical Performance

Key Features

ASTM A106

Gr.B
Base Tube

Tensile Strength: ≥415 MPa
Yield Strength: ≥240 MPa
Elongation (in 50mm): ≥30% (Longitudinal)
Hardness (Max): 187HB

High-Temperature Stability: Suitable for long-term service at -29°C~425°C (short-term up to 480°C with derating).

Pressure Resistance: Standard rating 2.5~10 MPa, ideal for steam/hot water systems.

Optimized Chemistry: Low carbon + manganese enhancement for strength-weldability balance.
Surface Treatment Ready: Accepts galvanizing/epoxy coating after degreasing.

Cu-T2 Fin
Tensile Strength	Annealed (O)	≥ 195 MPa
Tensile Strength	Hard (H)	295 - 380 MPa
Yield Strength	Annealed (O)	≤ 65 MPa
Yield Strength	Hard (H)	250 - 350 MPa
Elongation	Annealed (O)	≥ 40%
Elongation	Hard (H)	10% - 20%
Hardness	Annealed (O)	HBW ≤ 40
Hardness	Hard (H)	HBW 70 - 110
Shear Strength	Annealed (O)	~ 150 MPa
Shear Strength	Hard (H)	~ 250 MPa

2. Key Features

Exceptional Synergistic Effect
Superior Heat Transfer Efficiency
Outstanding Corrosion Resistance in Marine Environments
Unmatched Structural Integrity and Reliability
Long-Lasting Mechanical Bond
Optimized Life Cycle Cost

3. Key Applications

Oil & Gas Processing Systems: Crude Oil Heaters, Gas Coolers, Fuel Oil Heaters
Power & Utility Systems: Central Coolers, Boiler Feedwater Heaters
Safety & Environmental Control Systems: Inert Gas Coolers, Air Coolers, Firewater System Heat Exchangers
Marine & Floating Facilities: FPSOs (Floating Production, Storage, and Offloading units), LNG Carriers, Ship Engine Jacket Water Coolers and Lube Oil Coolers
