STAINLESS STEEL SEAMLESS COIL PIPE TP310S FOR START UP HEATER WITH COIL SUPPORT

Datos del producto:

Lugar de origen:	Porcelana
Nombre de la marca:	YUHONG
Certificación:	ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Número de modelo:	ASTM A312, ASME SA312

Pago y Envío Términos:

Cantidad de orden mínima:	100KGS

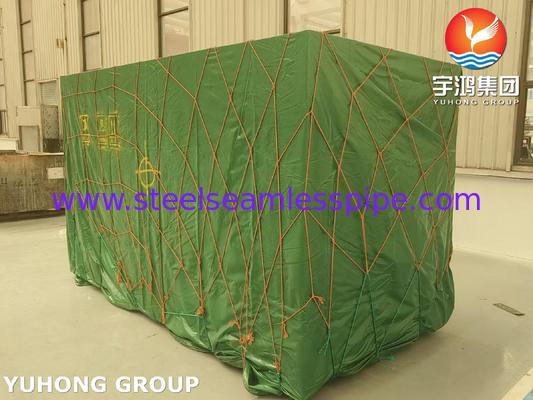

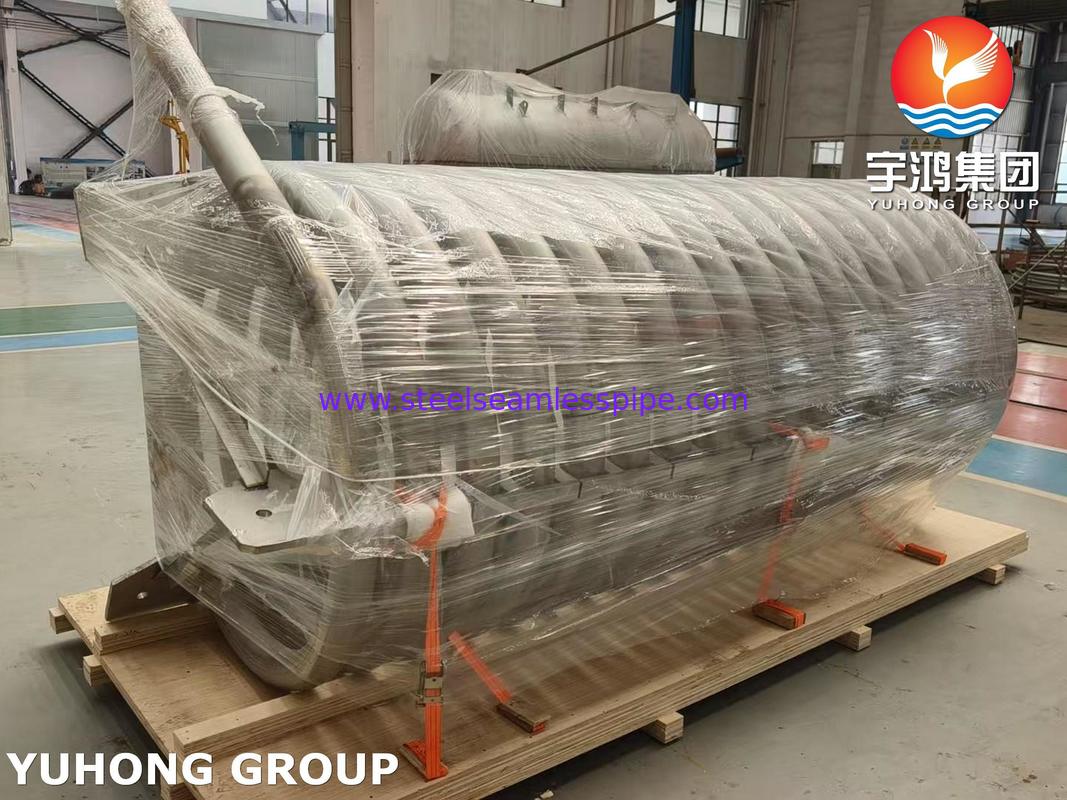

Detalles de empaquetado:	CAJA DE LA MADERA CONTRACHAPADA, PAQUETE, BOLSO TEJIDO
Tiempo de entrega:	7DÍAS
Condiciones de pago:	L/C, T/T

Contacto

Todos los productos

Tubo sin costura de acero inoxidable (290)

Tubo inconsútil de acero inoxidable (277)

Tubería de acero inoxidable a dos caras (127)

Tubo de acero inoxidable del duplex (29)

Tubo de aguja (107)

Tubo de aleta (631)

intercambiador de calor (17)

tubo del cambiador de calor (424)

Envase de tubos para intercambiadores de calor (37)

Cambiador de calor Tubesheet (116)

bafle del cambiador de calor (36)

Frío de aire (8)

Contenedor de presión (4)

tubo soldado con autógena de acero inoxidable (57)

Tubo soldado con autógena del acero inoxidable (114)

Tubo de la aleación de níquel (261)

Tubo de la aleación de níquel (79)

Tubo de la aleación de cobre (227)

Tubo del acero de aleación (184)

Tubo del titanio (10)

tubo recocido brillante (153)

Tubo de caldera (145)

colocación de acero (804)

Reborde de acero (590)

Las demás (391)

Partes de revestimiento (7)

Descripción detallada del producto

Estándar:	ASTM, ASME, JIS, EN...	Material:	TP304, TP304L, TP316, TP316L, TP310S..
Longitud:	Según el dibujo	sobredosis:	1/2" A 10"
Tipo:	Sin costuras, soldado	Superficie:	Pulido, encurtido, brillante recocido
Resaltar:	stainless steel seamless coil pipe , TP310S start up heater pipe , coil pipe with coil support

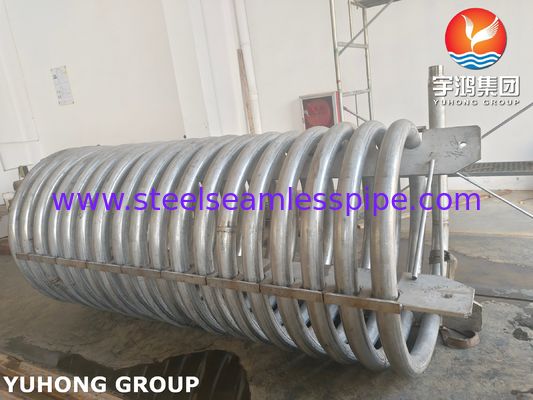

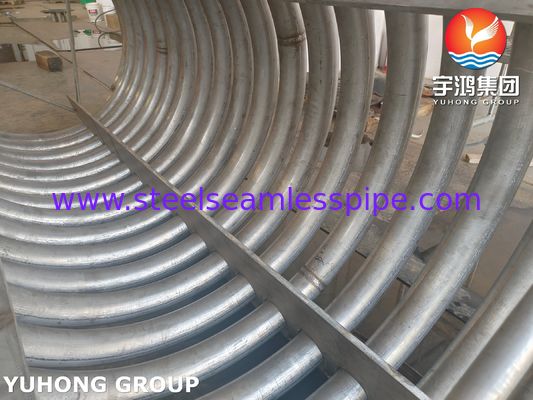

STAINLESS STEEL SEAMLESS COIL PIPE TP310S FOR START UP HEATER WITH COIL SUPPORT

The coiled pipe unit can run thousands of meters of continuous joint-free steel pipes (diameter 9~88.9mm) into the production pipe of an oil and gas well to complete specific workover operations such as well cleanout, fishing, fracturing, acidification, etc. or into its casing for logging operations or direct.Coil heaters can be closely wound to provide concentrated heat or can be stretched to fulfill distributed wattage needs. Coil heaters can also accommodate integrated thermocouples for precise temperature control and quick response.

Bent and formed stainless steel pipe is used in a variety of applications, including:

Manifold assemblies for the transportation industry
Hydraulic fluid supply lines for industrial purposes
Bumpers to protect OEM products
Housing for water monitoring systems
Tubular handles used in OEM instruments and machinery

Comparison with Other Heater Types
Feature	Coil-Shaped Tubular Heater	Straight Tubular Heater	Open Coil Heater (Exposed Wire)
Structure	Metal tube bent into a coil	Straight metal tube	Bare, exposed resistance wire coiled around insulators
Robustness	Very High. Protected from physical contact and environment.	High. Protected but less surface area in a compact space.	Low. Exposed and fragile.
Watt Density	Very High	Moderate	High
Typical Use	Air heating, high-temp platens	Immersion in liquids, surface mounting on tanks	Toasters, domestic space heaters, non-hazardous air ducts
Safety	Very Safe. Sheath prevents electrical contact.	Very Safe.	Less Safe. Risk of electric shock and fire from contact.

Grades:

304, 316L, 310S, and others as specified by the customer.

Chemical Composition of ASTM A312 TP310S

Grade	C	Mn	Si	P	S	Cr	Mo	Ni	N
310	min. max.	- 0.25	- 2.00	- 1.50	- 0.045	- 0.030	24.0 26.0	-	19.0 22.0
310S	min. max.	- 0.08	- 2.00	- 1.50	- 0.045	- 0.030	24.0 26.0	-	19.0 22.0

Mechanical Properties of ASTM A312 310S

Grade	Tensile Strength (MPa) min	Yield Strength 0.2% Proof (MPa) min	Elongation (% in 50mm) min	Hardness
Grade	Tensile Strength (MPa) min	Yield Strength 0.2% Proof (MPa) min	Elongation (% in 50mm) min	Rockwell B (HR B) max	Brinell (HB) max
310	515	205	40	95	217
310S	515	205	40	95	217
