ASME SB163 N02201 Nickel Alloy Seamless Condensers And Heat Exchangers Tubes

ASME SB163 N02201 Nickel Alloy Seamless Condensers And Heat Exchangers Tubes

  • ASME SB163 N02201 Nickel Alloy Seamless Condensers And Heat Exchangers Tubes
  • ASME SB163 N02201 Nickel Alloy Seamless Condensers And Heat Exchangers Tubes
  • ASME SB163 N02201 Nickel Alloy Seamless Condensers And Heat Exchangers Tubes
  • ASME SB163 N02201 Nickel Alloy Seamless Condensers And Heat Exchangers Tubes
ASME SB163 N02201 Nickel Alloy Seamless Condensers And Heat Exchangers Tubes
Datos del producto:
Lugar de origen: Porcelana
Nombre de la marca: YUHONG
Certificación: ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Número de modelo: ASME SB163
Pago y Envío Términos:
Cantidad de orden mínima: 500 kg
Precio: Depend
Detalles de empaquetado: Estuche
Tiempo de entrega: 30 a 65 días
Condiciones de pago: T/T, LC/C
Capacidad de la fuente: 1000tones/mes
Contacto
Todos los productos
Tubo sin costura de acero inoxidable (290)
Tubo inconsútil de acero inoxidable (277)
Tubería de acero inoxidable a dos caras (127)
Tubo de acero inoxidable del duplex (29)
Tubo de aguja (107)
Tubo de aleta (631)
intercambiador de calor (17)
tubo del cambiador de calor (424)
Envase de tubos para intercambiadores de calor (37)
Cambiador de calor Tubesheet (116)
bafle del cambiador de calor (36)
Frío de aire (8)
Contenedor de presión (4)
tubo soldado con autógena de acero inoxidable (57)
Tubo soldado con autógena del acero inoxidable (114)
Tubo de la aleación de níquel (261)
Tubo de la aleación de níquel (79)
Tubo de la aleación de cobre (227)
Tubo del acero de aleación (184)
Tubo del titanio (10)
tubo recocido brillante (153)
Tubo de caldera (145)
colocación de acero (804)
Reborde de acero (590)
Las demás (391)
Partes de revestimiento (7)
Descripción detallada del producto
Producto: Tubos de condensadores e intercambiadores de calor. Material de tubos de condensadores e intercambiadores de calor.: Aleación de níquel
Estándar de tubos para condensadores e intercambiadores de calor: ASME SB163 Grado de tubos de condensadores e intercambiadores de calor: N02201
Aplicación de tubos de condensadores e intercambiadores de calor.: Intercambiadores de calor/Calderas/Condensadores, etc. Embalaje de tubos para condensadores e intercambiadores de calor: Estuche
Resaltar:

ASME SB163 nickel alloy tubes

,

N02201 seamless condenser tubes

,

nickel alloy heat exchanger tubes

ASME SB163 N02201 Nickel Alloy Seamless Condensers And Heat Exchangers Tubes

YUHONG Group can offer ASTM B163 / ASME SB163 N02201 SMLS nickel alloy tubes.



ASTM B163 / ASME SB163 is the standard specification for seamless nickel and nickel-alloy condenser and heat-exchanger tubes. N02201 (Alloy 201) likes N02200, it's a commercially pure nickel (99.0% min) known for its excellent resistance to corrosion, particularly in caustic environments, and its high thermal and electrical conductivity. Its seamless nature ensures reliability under pressure and in corrosive service.N02201 resists corrosion in a wide range of reducing and neutral media, including fresh water, natural waters, non-oxidizing salts, and alkaline solutions. It is particularly resistant to caustic alkalies.


N02201 maintains good strength and ductility from cryogenic temperatures up to moderately high temperatures. Alloy 201 has very low carbon content (<0.02%), which prevents carbide precipitation (sensitization) during welding and service, preserving its corrosion resistance in the heat-affected zones.

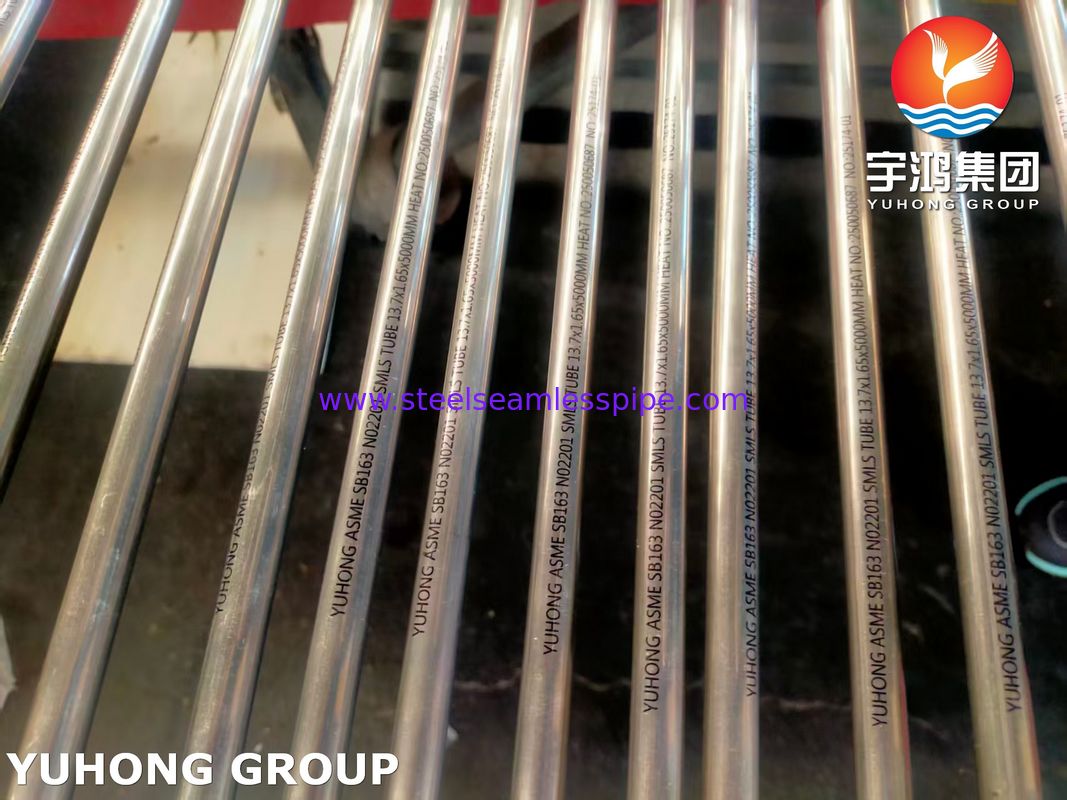

ASME SB163 N02201 Nickel Alloy Seamless Condensers And Heat Exchangers Tubes 0



Chemical Composition % Alloy 201 / UNS N02201


Nickel Copper Iron Manganese Carbon Silicon Sulfur
99.0 min 0.25 max 0.40 max 0.35 0.02max 0.35 0.01
Nickel element shall be determined arithmetically by difference.


Mechanical Property Alloy 201 / UNS N02201


Condition Tensile Strength min Yield Strength min Elongation (%) Rockwell Hardness
Annealed  50ksi (345MPa) 28ksi (193MPa) 40 min. /
  Stress-relieved 60ksi (414MPa) 55ksi (379MPa) 15 min. B62 max



SB163 N02201 tubes common applications include:



Caustic Evaporators and Concentrators
Tubes are used in heat exchangers that concentrate sodium hydroxide (NaOH) or potassium hydroxide (KOH) solutions from weak concentrations to 50% or even 73%. Stainless steel would corrode catastrophically in this service.
Chemical Processing Industry (CPI)
1.Organic Chlorination Processes: Handling chlorinated hydrocarbons and associated by-products like HCl.
2.Production of Plastics and Synthetic Fibers: Where corrosive catalysts or intermediates are present.
3.Fine Chemical and Pharmaceutical Synthesis: For reactors and heat exchangers handling aggressive media where purity is critical (nickel ions are less problematic than corrosion products from other metals).
Power Generation & Marine
1.Feedwater Heaters in Advanced Plants: Where water chemistry is highly controlled, and reliability is paramount.
2.Specialized Condensers: In geothermal plants or in coastal/offshore facilities where cooling water is highly aggressive, brackish, or polluted, and where chlorination is used for biofouling control.

Other Specialized Applications
1.HF Alkylation Units in oil refineries (for handling hydrogen fluoride).
2.Production and Handling of Fluorine and Fluorinated Compounds.
3.Sea Water Desalination Plants, particularly in the high-temperature brine heaters and sections with high chloride concentration.



Testing and Inspection



Hydrostatic Test (or Nondestructive Electric Test)

Flattening Test,Reverse Flattening Test

Flaring Test

Hardness Test

Tension Tests

Chemical Analysis

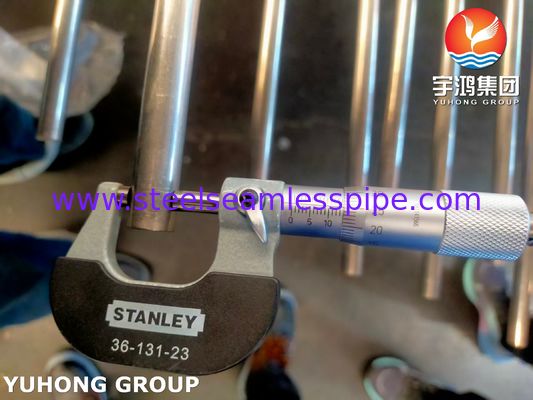

ASME SB163 N02201 Nickel Alloy Seamless Condensers And Heat Exchangers Tubes 1
