ASTM B423 UNS N08825 Incoloy 825 Nickel Alloy Steel Seamless Large Diameter Tube, Resistant To High Temperature, High Concentration Acid

Datos del producto:

Lugar de origen:	Porcelana
Nombre de la marca:	YUHONG
Certificación:	ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Número de modelo:	Asm b423 no n08825

Pago y Envío Términos:

Cantidad de orden mínima:	100kg
Precio:	Negociable
Detalles de empaquetado:	Caja de madera contrachapada/caja de hierro/paquete con tapa de plástico
Tiempo de entrega:	20-80 días
Condiciones de pago:	LC, T/T

Contacto

Todos los productos

Tubo sin costura de acero inoxidable (327)

Tubo inconsútil de acero inoxidable (322)

Tubería de acero inoxidable a dos caras (134)

Tubo de acero inoxidable del duplex (36)

Tubo de aguja (152)

Tubo de aleta (698)

intercambiador de calor (24)

tubo del cambiador de calor (456)

Envase de tubos para intercambiadores de calor (46)

Cambiador de calor Tubesheet (124)

bafle del cambiador de calor (39)

Frío de aire (10)

Contenedor de presión (4)

tubo soldado con autógena de acero inoxidable (61)

Tubo soldado con autógena del acero inoxidable (130)

Tubo de la aleación de níquel (271)

Tubo de la aleación de níquel (96)

Tubo de la aleación de cobre (247)

Tubo del acero de aleación (208)

Tubo del titanio (20)

tubo recocido brillante (173)

Tubo de caldera (151)

colocación de acero (855)

Reborde de acero (655)

Las demás (404)

Partes de revestimiento (8)

Descripción detallada del producto

Estándar:	ASTM B423	Especificación:	UNS N08825 Incoloy 825
Forma:	Redondo	Tipo:	Sin costura
Longitud:	Personalizado	Servicio de procesamiento:	Doblado, Soldadura, Desenrollado, Punzonado, Corte
Resaltar:	ASTM B423 Incoloy 825 nickel alloy tube , UNS N08825 seamless large diameter pipe , high temperature acid resistant nickel alloy tube

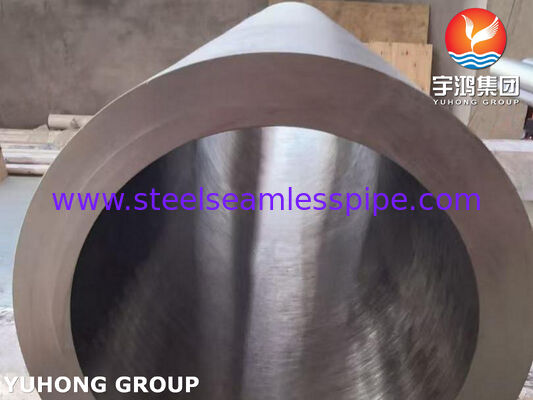

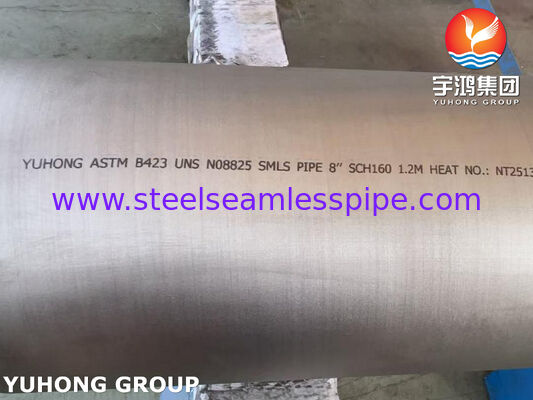

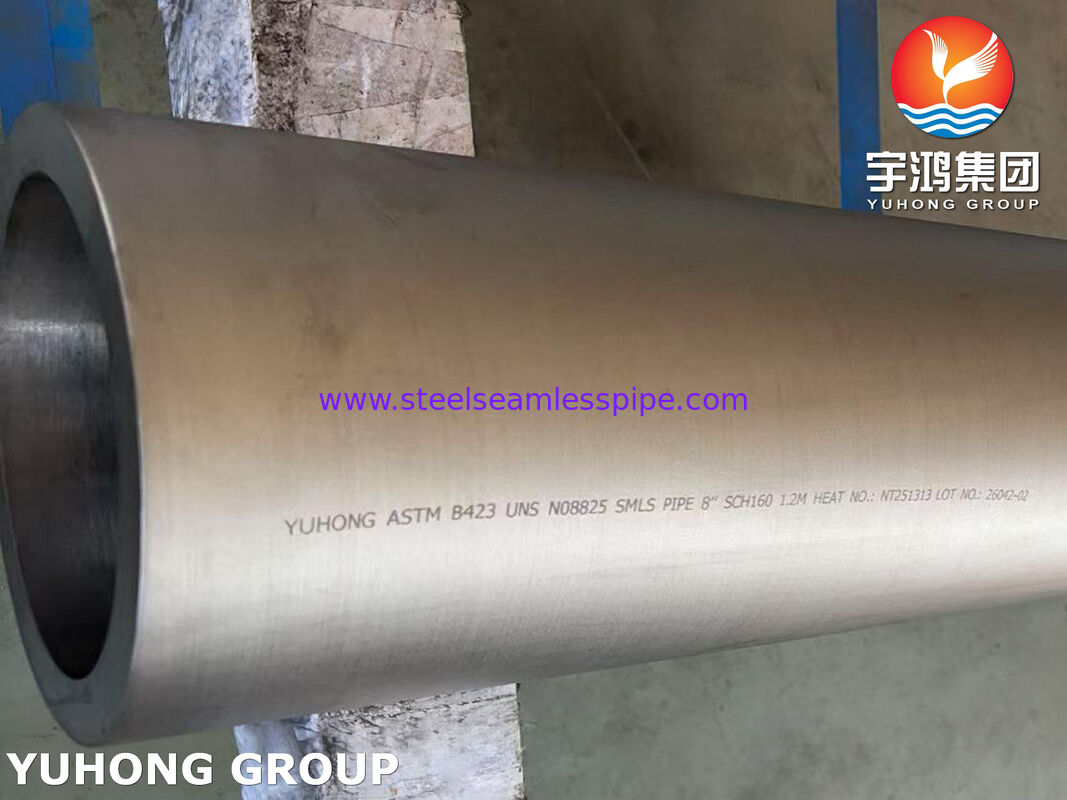

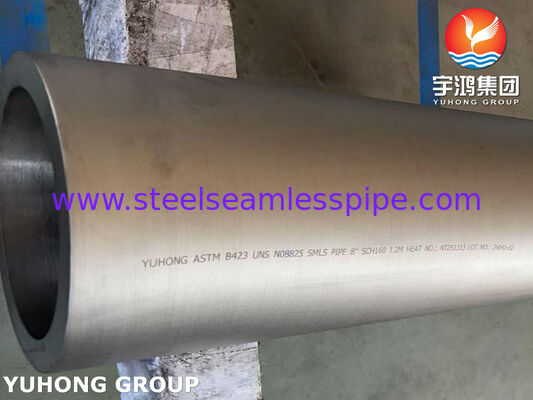

ASTM B423 UNS N08825 Incoloy 825 Nickel Alloy Steel Seamless Large Diameter Tube, Resistant To High Temperature, High Concentration Acid

ASTM B423 UNS N08825 tube is a seamless tube made of a nickel-iron-chromium-based austenitic alloy. Tubes manufactured according to this standard are widely used in petrochemical, marine engineering, and nuclear power industries.

The commercial grade is Incoloy 825. It is a nickel-based alloy specifically designed for extremely corrosive environments, exhibiting excellent resistance to stress corrosion cracking by sulfuric acid, phosphoric acid, and chloride ions, and performing exceptionally well in high-temperature, high-concentration acid, and chloride-containing media.

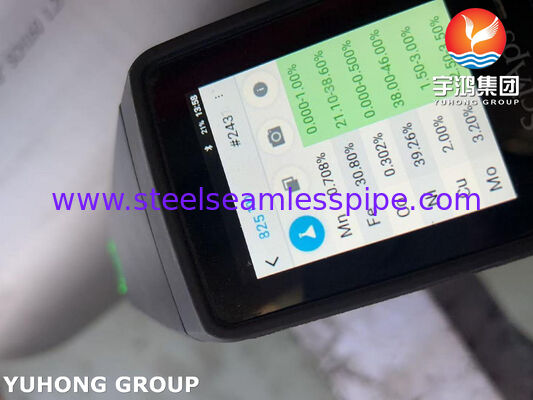

Chemical Composition (Ladle Analysis)
Element	Composition (wt%)
Nickel (Ni)	38.0 – 46.0
Iron (Fe)	≥ 22.0 (balance)
Chromium (Cr)	19.5 – 23.5
Molybdenum (Mo)	2.5 – 3.5
Copper (Cu)	1.5 – 3.0
Titanium (Ti)	0.6 – 1.2
Carbon (C)	≤ 0.05
Manganese (Mn)	≤ 1.00
Silicon (Si)	≤ 0.50
Phosphorus (P)	≤ 0.030
Sulfur (S)	≤ 0.030

Mechanical Properties (Seamless Pipe, Solution Annealed)
Property	Cold Finished	Hot Finished	Requirement Min.
Tensile Strength, min	586 MPa (85 ksi)	517 MPa (75 ksi)	586 MPa (85 ksi)
Yield Strength (0.2% offset), min	241 MPa (35 ksi)	172 MPa (25 ksi)	241 MPa (35 ksi)
Elongation (in 2 in / 50 mm), min	30%	30%	30%
Hardness (Rockwell B), max	90 HRB	90 HRB	90 HRB

Physical Properties (Typical Values)
Property	Value
Density	8.14 g/cm³ (0.294 lb/in³)
Melting Range	1370 – 1400 °C (2500 – 2550 °F)
Specific Heat Capacity (20 °C)	440 J/(kg·K) (0.105 Btu/(lb·°F))
Thermal Conductivity (20 °C)	10.8 – 11.0 W/(m·K) (75 Btu·in/(ft²·h·°F))
Electrical Resistivity (20 °C)	112 – 113 μΩ·cm
Modulus of Elasticity (20 °C)	195 GPa (28.3 × 10³ ksi)
Modulus of Rigidity (20 °C)	76 GPa (11.0 × 10³ ksi)

Application

Petrochemicals: Residue hydrogenation unit pipelines, sour gas pipelines, offshore platform oil and gas transportation
Chemical processing: Sulfuric acid/phosphoric acid production equipment, acid washing heating pipes, reactor pipelines
Marine engineering: Seawater cooling heat exchangers, seawater desalination plants, subsea pipelines
Nuclear power: Nuclear fuel reprocessing equipment; Resistant to various corrosive media combinations
Oil and gas extraction: Downhole control pipelines, chemical injection pipelines, sour gas well equipment

ASTM B423 UNS N08825 Incoloy 825 Nickel Alloy Steel Seamless Large Diameter Tube, Resistant To High Temperature, High Concentration Acid 0
