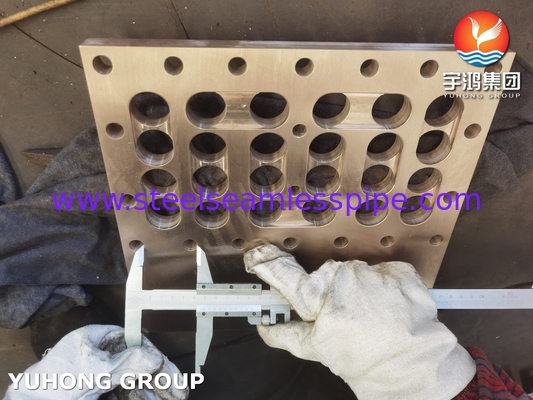

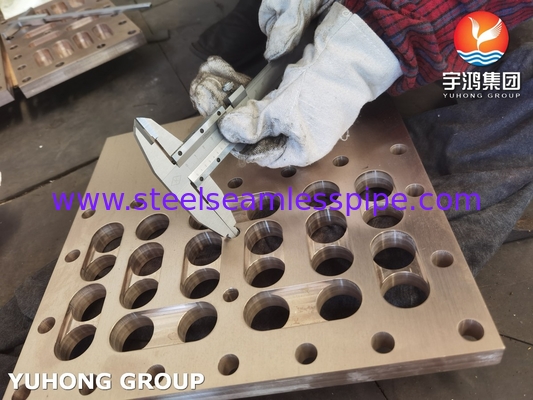

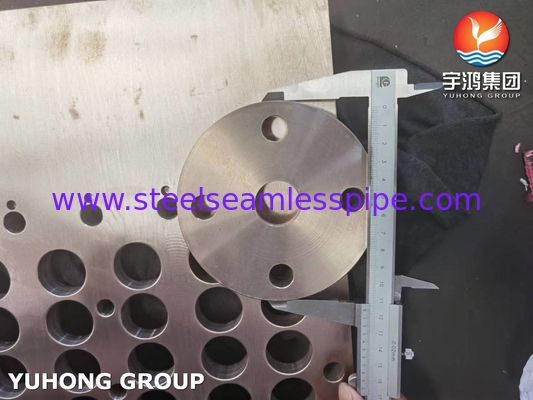

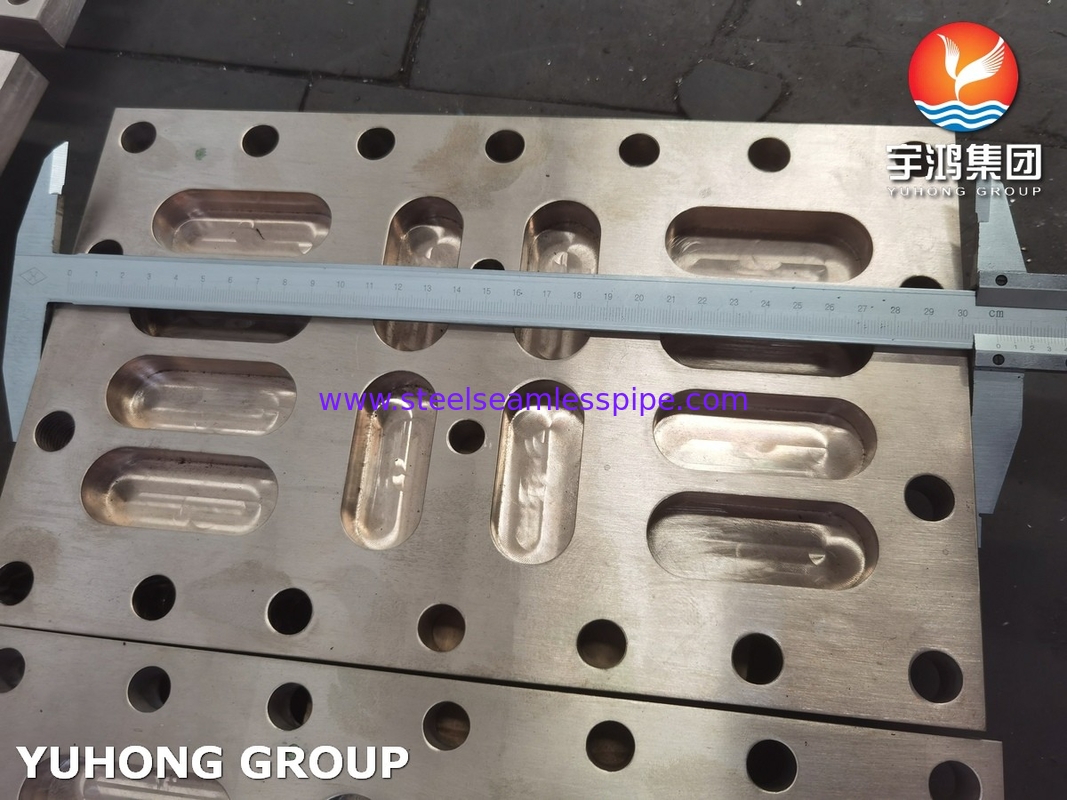

ASTM B177 C70600 Square Tubesheet Ultimate Heat Exchanger Component

ASTM B177 C70600 Square Tubesheet Ultimate Heat Exchanger Component

  • ASTM B177 C70600 Square Tubesheet Ultimate Heat Exchanger Component
  • ASTM B177 C70600 Square Tubesheet Ultimate Heat Exchanger Component
  • ASTM B177 C70600 Square Tubesheet Ultimate Heat Exchanger Component
  • ASTM B177 C70600 Square Tubesheet Ultimate Heat Exchanger Component
ASTM B177 C70600 Square Tubesheet Ultimate Heat Exchanger Component
Datos del producto:
Lugar de origen: China
Nombre de la marca: YUHONG
Certificación: ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015
Número de modelo: Se aplicarán los siguientes requisitos:
Pago y Envío Términos:
Cantidad de orden mínima: 500 kilos
Precio: Negociable
Detalles de empaquetado: Cuadro de madera de plywood/Cuadro de hierro/Bundle con tapa de plástico
Tiempo de entrega: 10-90 días
Condiciones de pago: En el caso de las empresas de servicios de telecomunicaciones:
Capacidad de la fuente: De acuerdo con la petición del cliente
Contacto
Descripción detallada del producto
Placa de soporte: Se aplicarán los siguientes requisitos: tamaño: Disponible en varios tamaños
El grosor: Personalizable Tipo de intercambiador de calor: Shell y tubo
Aplicación: Industriales Dimensión: Las medidas de control se aplican a las empresas que se encuentran en el ámbito de aplicación de la
Resaltar:

Heat Exchanger Square Tubesheet

,

C70600 Square Tubesheet

,

ASTM B177 Square Tubesheet

ASTM B177 C70600 Square Tubesheet For Heat Exchangers


C70600 square tubesheet refers to a square tubesheet made from this specific copper-nickel alloy. A tubesheet is a perforated sheet or welded structure used to separate two fluid streams while allowing heat transfer between them. It usually has holes drilled or punched to accommodate the tubes of a heat exchanger.

C70600 is a copper-nickel alloy. It is often referred to as 90/10 (copper/nickel) copper-nickel. Tubesheets made from it have excellent corrosion resistance (especially in saltwater environments) and are often used in marine and industrial applications.



Copper Nickel 90/10 Chequered Plate Equivalent Grade

STANDARD WERKSTOFF NR. UNS
Cu-Ni 90/10 2.0872 C70600



Cu-Ni 90/10 Cold Rolled Sheets Chemical Composition

Grade Cu Mn Pb Fe Zn Ni
Cupro Nickel 90/10 88.6 min 1.0 max .05 max 1.8 max 1 max 9-11 max



Cupro Nickel 90/10 Polished Cold Drawn Plates Mechanical Properties

Element Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
Cu-Ni 90/10 8.1 g/cm3 1443 °C (2430 °F) Psi -80,000, MPa -551 Psi - 35,000, MPa - 241 30 %






Applications:



Shipbuilding
Power plants
Desalination plants
HVAC systems




ASTM B177 C70600 Square Tubesheet Ultimate Heat Exchanger Component 0

ASTM B177 C70600 Square Tubesheet Ultimate Heat Exchanger Component 1
