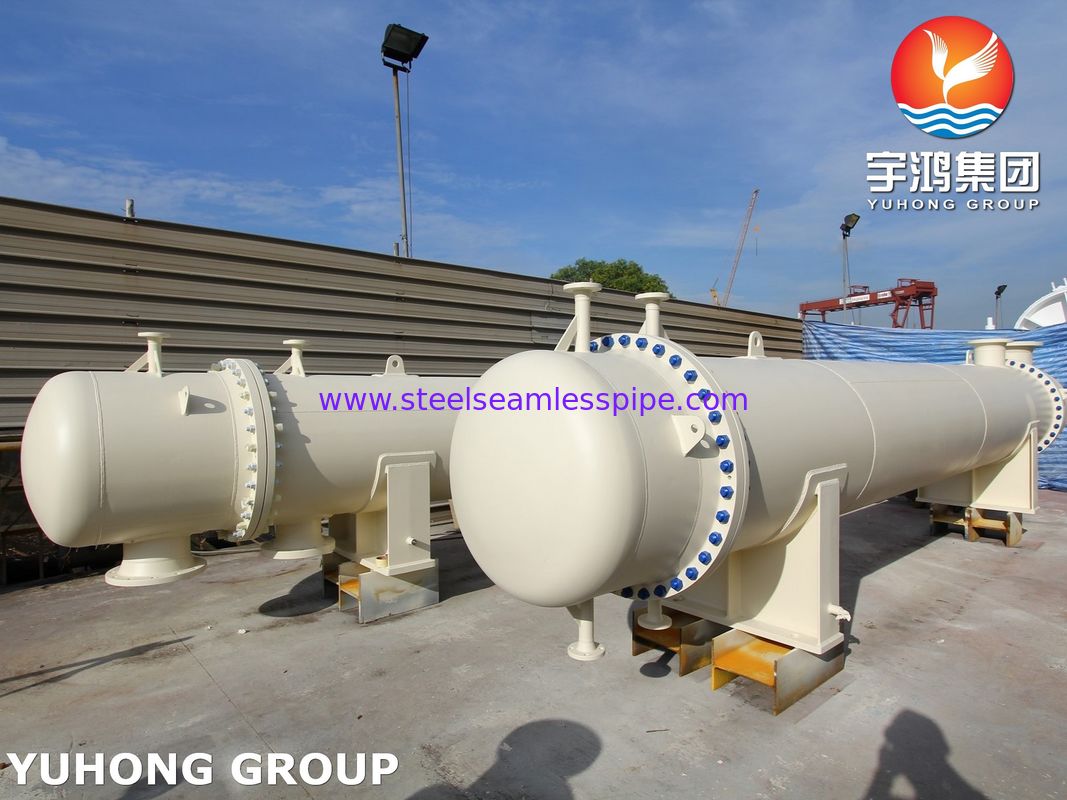

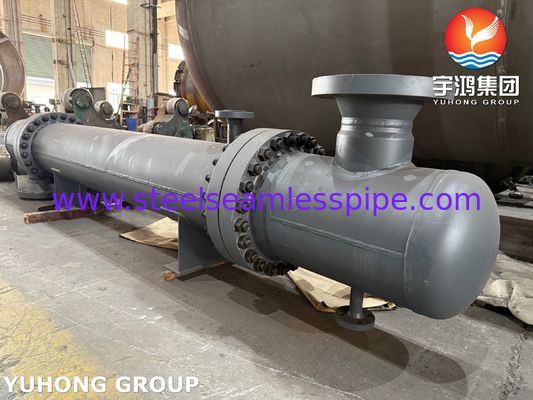

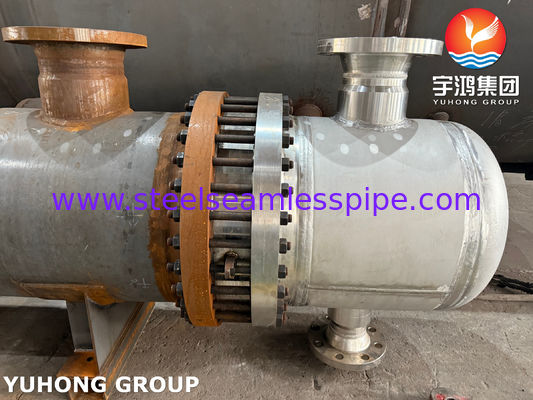

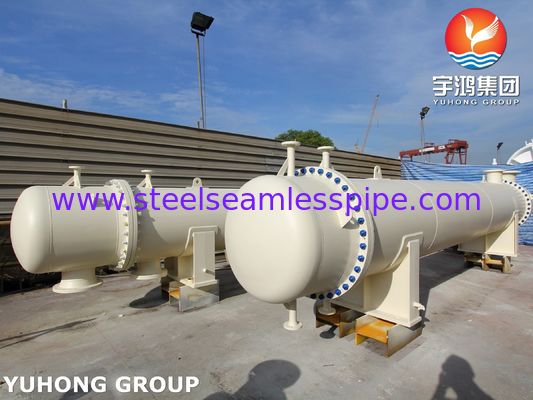

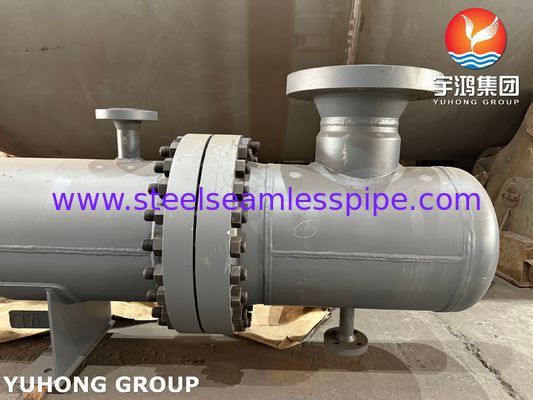

316L Floating Head Heat Exchanger AES Type ASME Section VIII Div. 1

316L Floating Head Heat Exchanger AES Type ASME Section VIII Div. 1

  • 316L Floating Head Heat Exchanger AES Type ASME Section VIII Div. 1
  • 316L Floating Head Heat Exchanger AES Type ASME Section VIII Div. 1
  • 316L Floating Head Heat Exchanger AES Type ASME Section VIII Div. 1
  • 316L Floating Head Heat Exchanger AES Type ASME Section VIII Div. 1
316L Floating Head Heat Exchanger AES Type ASME Section VIII Div. 1
Datos del producto:
Lugar de origen: Procesamiento químico, refinación de petróleo, generación de energía, productos farmacéuticos, proce
Nombre de la marca: Floating Head Heat Exchanger
Certificación: ASME Section VIII, TEMA (Tubular Exchanger Manufacturers Association)
Número de modelo: Tipo de AES
Pago y Envío Términos:
Detalles de empaquetado: Cajas de madera estándar o embalaje personalizado según los requisitos del cliente.
Tiempo de entrega: 60 a 90 días
Capacidad de la fuente: 10 juegos/mes
Contacto
Todos los productos
Tubo sin costura de acero inoxidable (285)
Tubo inconsútil de acero inoxidable (273)
Tubería de acero inoxidable a dos caras (127)
Tubo de acero inoxidable del duplex (28)
Tubo de aguja (98)
Tubo de aleta (608)
intercambiador de calor (15)
tubo del cambiador de calor (424)
Envase de tubos para intercambiadores de calor (37)
Cambiador de calor Tubesheet (115)
bafle del cambiador de calor (36)
Frío de aire (7)
Contenedor de presión (4)
tubo soldado con autógena de acero inoxidable (57)
Tubo soldado con autógena del acero inoxidable (112)
Tubo de la aleación de níquel (259)
Tubo de la aleación de níquel (75)
Tubo de la aleación de cobre (219)
Tubo del acero de aleación (177)
Tubo del titanio (9)
tubo recocido brillante (153)
Tubo de caldera (138)
colocación de acero (791)
Reborde de acero (577)
Las demás (386)
Partes de revestimiento (5)
Descripción detallada del producto
Material: Acero inoxidable 316L Norma de diseño: ASME Sección VIII, TEMA (Asociación de Fabricantes de Intercambiadores Tubulares)
Aplicaciones: Aplicaciones Normas de conformidad: Sección VIII Div. 1, Normas TEMA, PED (Directiva de equipos a presión),
Resaltar:

316L Floating Head Heat Exchanger

,

Floating Head Heat Exchanger ASME

316L Floating Head Heat Exchanger AES Type ASME Section VIII Div. 1



The 316L Floating Head Heat Exchanger (AES Type) is designed per ASME Section VIII Div. 1, ideal for chemical processing, oil refineries, power plants, pharmaceuticals, and food industries. It efficiently handles cooling, heating, and condensing tasks with excellent corrosion resistance and easy maintenance for high-performance systems.

Component Material List

Component Material Notes
Shell 316L Stainless Steel Corrosion-resistant, suitable for high-temperature and chemical environments.
Tube Bundle 316L Stainless Steel High thermal conductivity and excellent resistance to pitting and crevice corrosion.
Floating Head Cover 316L Stainless Steel Allows easy cleaning of the tube bundle; corrosion-resistant.
Tube Sheets 316L Stainless Steel Prevents leaks between shell and tube sides; provides structural stability.
Baffles/Support Plates 316L Stainless Steel Ensures proper flow distribution and supports the tubes.
Gaskets PTFE (Polytetrafluoroethylene) / Graphite High chemical resistance and sealing performance under high temperatures and pressures.
Bolts and Nuts Stainless Steel 316L or ASTM A193 Grade B8 High mechanical strength and corrosion resistance.
Flanges Stainless Steel 316L Provides strong and reliable connections between components.
Nozzles (Inlet/Outlet) Stainless Steel 316L Ensures smooth flow of fluids into and out of the heat exchanger.

Component Dimension List

Component Dimension Range Notes
Shell Diameter 200 mm – 2000 mm Customizable based on specific heat transfer requirements.
Tube Outer Diameter (OD) 10 mm – 50 mm Standard sizes are 19.05 mm, 25.4 mm, and 38.1 mm.
Tube Wall Thickness 0.5 mm – 3 mm Thickness depends on pressure and temperature requirements.
Tube Length 1 m – 12 m Standard lengths are 6 m and 12 m, but custom lengths are available.
Floating Head Clearance 50 mm – 300 mm Allows for easy removal and cleaning of the tube bundle.
Baffle Spacing 100 mm – 400 mm Optimized for flow distribution and heat transfer efficiency.
Nozzle Diameter 50 mm – 600 mm Sized according to fluid flow rate and pressure requirements.
Flange Dimensions ASME B16.5 Standards Customization available for specific pressure ratings (Class 150, 300, 600, etc.).

Required Testing

Test Name Description Purpose
Hydrostatic Test Pressurizing shell and tube sides with water to test for leaks or structural failures. Ensures the heat exchanger can handle operating pressures.
Pneumatic Test Pressurizing with air or inert gas to check for leaks in a dry environment. Ensures safety in systems where water-based testing is not suitable.
Radiographic Testing (RT) X-ray inspection of welds to detect internal defects. Ensures weld quality and structural integrity.
Ultrasonic Testing (UT) Uses high-frequency sound waves to detect material defects or thickness variations. Ensures tube and shell material meet thickness and quality standards.
Dye Penetrant Test (PT) Applies dye to detect surface cracks or defects in welds and other components. Verifies the surface integrity of critical components.
Material Composition Test Spectrometric analysis to verify the chemical composition of 316L stainless steel components. Ensures compliance with material standards and corrosion resistance requirements.
Hardness Testing Measures the hardness of 316L material to confirm mechanical properties. Ensures the material is suitable for pressure and temperature conditions.
Leak Test Testing with helium or nitrogen to detect micro-leaks in the system. Ensures complete sealing for high-performance applications.

Applications by Industry

Industry Application
Chemical Processing Heat exchangers for cooling, heating, or condensing chemical fluids.
Oil & Gas Refinery heat exchangers for crude oil cooling, gas separation, and distillation processes.
Power Generation Steam condensers and feedwater heaters in thermal and nuclear power plants.
Pharmaceuticals Temperature control for drug manufacturing, fermentation, and sterile processing.
Food & Beverage Pasteurization, cooling, and heating systems for food and beverage production.
Marine & Offshore Cooling systems for ship engines, fuel oil, and lubricants.

Applications in Specific Equipment

Equipment Name Function of Heat Exchanger
Chemical Reactor Controls the temperature of chemical reactions by transferring heat in or out of the reactor.
Crude Oil Distillation Unit Preheats crude oil and cools the separated distillates.
Steam Condenser Converts exhaust steam from turbines into water for reuse.
Evaporator Facilitates the evaporation of liquids in food and chemical industries.
Air Compressor Cooler Cools compressed air to reduce temperature and moisture content.
Lube Oil Cooler Maintains the temperature of lubricating oil in engines and gearboxes.



316L Floating Head Heat Exchanger AES Type ASME Section VIII Div. 1 0
