ASTM A182 F11 CL2 Forgings Alloy Steel Sockolet High Pressure Pipe Fittings

Datos del producto:

Lugar de origen:	PORCELANA
Nombre de la marca:	YUHONG
Certificación:	ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Número de modelo:	ASTM A182 F11 CL2 ALEAY SECKOLET

Pago y Envío Términos:

Cantidad de orden mínima:	1 por ciento
Detalles de empaquetado:	En caso de que se produzca una alteración en la calidad de los productos, se aplicará el procedimien
Tiempo de entrega:	7 días
Condiciones de pago:	L/C, T/T

Contacto

Todos los productos

Tubo sin costura de acero inoxidable (290)

Tubo inconsútil de acero inoxidable (277)

Tubería de acero inoxidable a dos caras (127)

Tubo de acero inoxidable del duplex (29)

Tubo de aguja (107)

Tubo de aleta (631)

intercambiador de calor (17)

tubo del cambiador de calor (424)

Envase de tubos para intercambiadores de calor (37)

Cambiador de calor Tubesheet (116)

bafle del cambiador de calor (36)

Frío de aire (8)

Contenedor de presión (4)

tubo soldado con autógena de acero inoxidable (57)

Tubo soldado con autógena del acero inoxidable (114)

Tubo de la aleación de níquel (261)

Tubo de la aleación de níquel (79)

Tubo de la aleación de cobre (227)

Tubo del acero de aleación (184)

Tubo del titanio (10)

tubo recocido brillante (153)

Tubo de caldera (145)

colocación de acero (804)

Reborde de acero (590)

Las demás (391)

Partes de revestimiento (7)

Descripción detallada del producto

Nombre del producto:	zócalo	Dimensiones:	ANSI, ASTM, ASME, BS, DIN, EN
Estándar:	ASTM A182/ ASME SA182	Material:	F5 y F9, F11, F12, F22, F91
Tamaño:	Como requisitos de dibujo del comprador o estándar	Forma:	puede la aduana, como requisitos del dibujo del comprador
Clase:	3000#, 6000#, 9000#
Resaltar:	ASTM A182 F11 CL2 alloy steel sockolet , high pressure pipe fittings alloy steel , forged steel sockolet pipe fittings

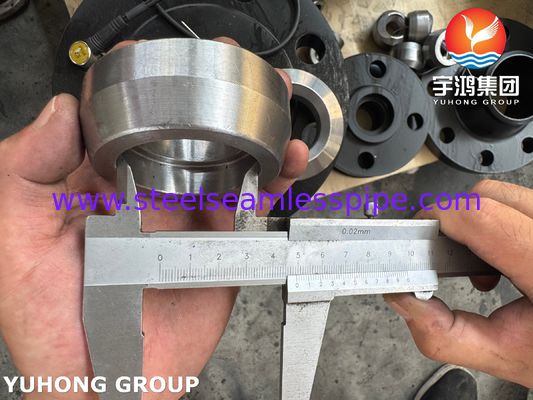

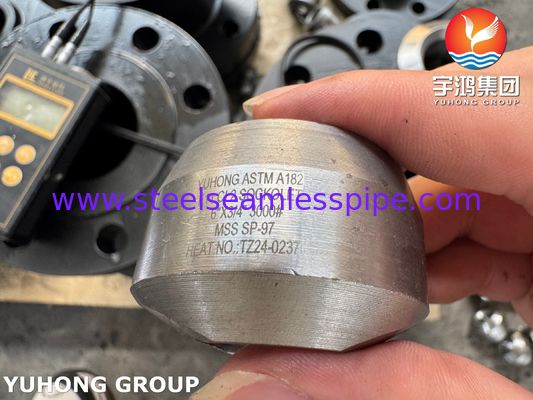

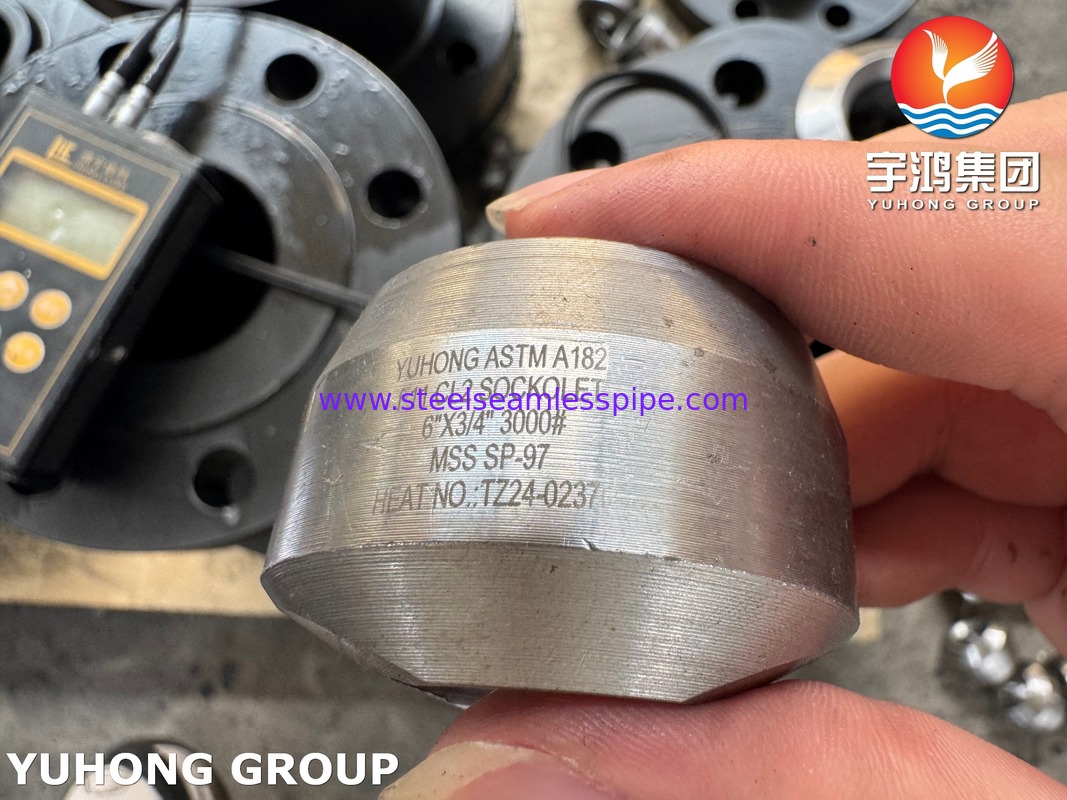

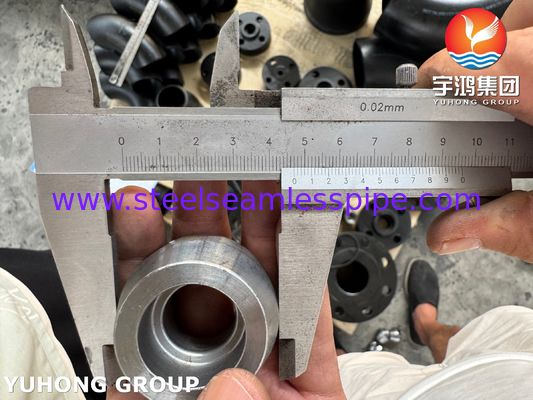

ASTM A182 F11 CL2 Alloy Steel Forged Sockolet for High Pressure Service

A Sockolet is a type of branch connection fitting manufactured by a company called Bonney Forge (now part of PCC Energy Group). The name has become generic, much like "Kleenex" for tissues. It is used to create a 90-degree branch from a main run pipe without the need for a separate tee fitting.

Design: It has a socket-weld outlet on the branch side and a butt-weld connection on the run side (the header). The branch pipe is inserted into the socket and fillet-welded.
Purpose: It provides a strong, reinforced branch connection that is ideal for small-bore piping (typically NPS 2" and below) in high-pressure systems. It is more compact and offers better flow characteristics than a threaded coupling or a saddle-type connection.

ASTM A182 F11 CL2 Alloy Steel Forged Fitting Sockolet Equivalent Grade

Brand Name	Ravne No.	Mat. No.	DIN	EN	AISI
13CRMO44	762	1.7335	13CrMo44	13CrMo4-5	A 182 Grade F11

ASTM A182 F11 CL2 Alloy Steel Forged Fitting Sockolet Chemical Composition (%)

C	Si	Mn	Cr	Mo	P	S
0.1-0.2	0.5-1.0	0.3-0.8	1.0-1.5	0.44-0.65	0.04 max	0.04max

Comparison Table: F11 vs. Common Alternatives

Feature	ASTM A182 F11 CL2	ASTM A105 (Carbon Steel)	ASTM A182 F22 (Grade 22)	ASTM A182 F316L (Stainless)
Primary Use	High-Temp Steam & Process	Low-Temp Utility Services	Higher Temp/Pressure than F11	Corrosion Resistance
Key Elements	1.25% Cr, 0.5% Mo	Carbon, Manganese	2.25% Cr, 1.0% Mo	17% Cr, 12% Ni, 2.5% Mo
Temp Range	Up to ~1000°F (538°C)	Up to ~800°F (427°C)	Up to ~1200°F (649°C)	Varies (for corrosion)
Main Advantage	Balanced strength & weldability	Low Cost	Superior Creep Strength	Excellent Corrosion Resistance
Weldability	Good (with pre/PWHT)	Excellent	Requires careful procedure	Excellent

Specification

Standard	Types	Class Rating/Schedule	Ends	Size
ASME B16.11	90°Elbow/ 45°Elbow/ Tee/ Cross/Pipe Cap/ Half Coupling/Full Coupling	3000LB/6000LB	Threaded	1/4''~4''
		3000LB/6000LB	Socket-welding	1/8''~4''
	90°Elbow/ 45°Elbow/ Tee/ Cross/Half Coupling/Full Coupling	9000LB	Socket-welding	1/2''~2''
	Street Elbow	3000LB	Threaded	1/8''~2''
	Street Elbow	6000LB	Threaded	1/8''~1-1/2''
	Lateral Tee	3000LB	Socket-welding	1/4''~2''
		6000LB	Socket-welding	1/2''~1-1/2''
		3000LB	Threaded	3/8''~2‘’
		6000LB		1/2''~2''
		9000LB		1/2''~1-1/2''
	Flush Bushing/Hex Bushing/Hex Plug/Round Plug/Square Plug	3000LB/6000LB	Threaded	1/8''~4''
MSS SP79	Reducer Inserts	3000LB/6000LB/9000LB	Socket-welding	3/8‘’x1/4''~2x1/2''
MSS SP83	Union	3000LB	Socket-welding/Threaded	1/8''~3''
MSS SP95	Concentric/Eccentric Swaged Nipples		See Below Note1	1/4‘’~12''
MSS SP95	Bull Plugs		Threaded	1/8''~12''
MSS SP97	Weldolet	STD, XS, Sch 160/XXS	Butt-welding	1/8''~36‘’ or larger
	Sockolet	3000LB/6000LB	Socket-welding	1/8''~6''
	Threadolet	3000LB/6000LB	Threaded	1/8''~6''
	Nipolet	XS/XXS	Plain/Threaded	1/2''~2''
	Elbolet	3000LB/6000LB	Socket-welding/Threaded	1/4''~2''
	Elbolet	STD/XS/160/XXS	Butt-welding	1/4''~2-1/2'' or larger
	Latrolet	3000LB/6000LB	Socket-welding/Threaded	1/2''~2''
	Latrolet	STD/XS/160/XXS	Butt-welding	1/2''~2-1/2''
	Flangolet,Nipolet,Sweepolet,etc. available as per client' demands.
