ASTM A403 WP304/WP304L Stainless Steel Elbow, Buttweld Fitting, ASME B16.9

Datos del producto:

Lugar de origen:	Porcelana
Nombre de la marca:	YUHONG
Certificación:	API, PED , ABS, DNV, BV, LR
Número de modelo:	ASTM A403 WP304/WP304L

Pago y Envío Términos:

Cantidad de orden mínima:	1 pieza
Precio:	Negitable
Detalles de empaquetado:	En el caso de los productos de las partidas 1 y 2 del presente capítulo, el valor de todas las parti
Tiempo de entrega:	7 dias
Condiciones de pago:	LC, T/T
Capacidad de la fuente:	1000 toneladas por mes

Contacto

Todos los productos

Tubo sin costura de acero inoxidable (308)

Tubo inconsútil de acero inoxidable (297)

Tubería de acero inoxidable a dos caras (132)

Tubo de acero inoxidable del duplex (33)

Tubo de aguja (134)

Tubo de aleta (672)

intercambiador de calor (20)

tubo del cambiador de calor (443)

Envase de tubos para intercambiadores de calor (40)

Cambiador de calor Tubesheet (117)

bafle del cambiador de calor (37)

Frío de aire (9)

Contenedor de presión (4)

tubo soldado con autógena de acero inoxidable (58)

Tubo soldado con autógena del acero inoxidable (120)

Tubo de la aleación de níquel (266)

Tubo de la aleación de níquel (92)

Tubo de la aleación de cobre (240)

Tubo del acero de aleación (204)

Tubo del titanio (15)

tubo recocido brillante (155)

Tubo de caldera (151)

colocación de acero (826)

Reborde de acero (615)

Las demás (401)

Partes de revestimiento (7)

Descripción detallada del producto

Resaltar:

ASTM A403 stainless steel elbow

buttweld fitting ASME B16.9

WP304L stainless steel fitting

Product Overview & Specifications

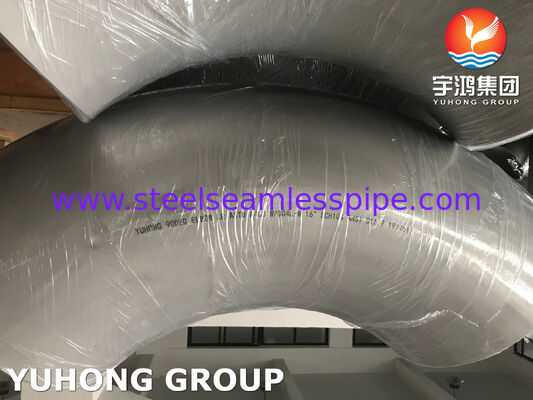

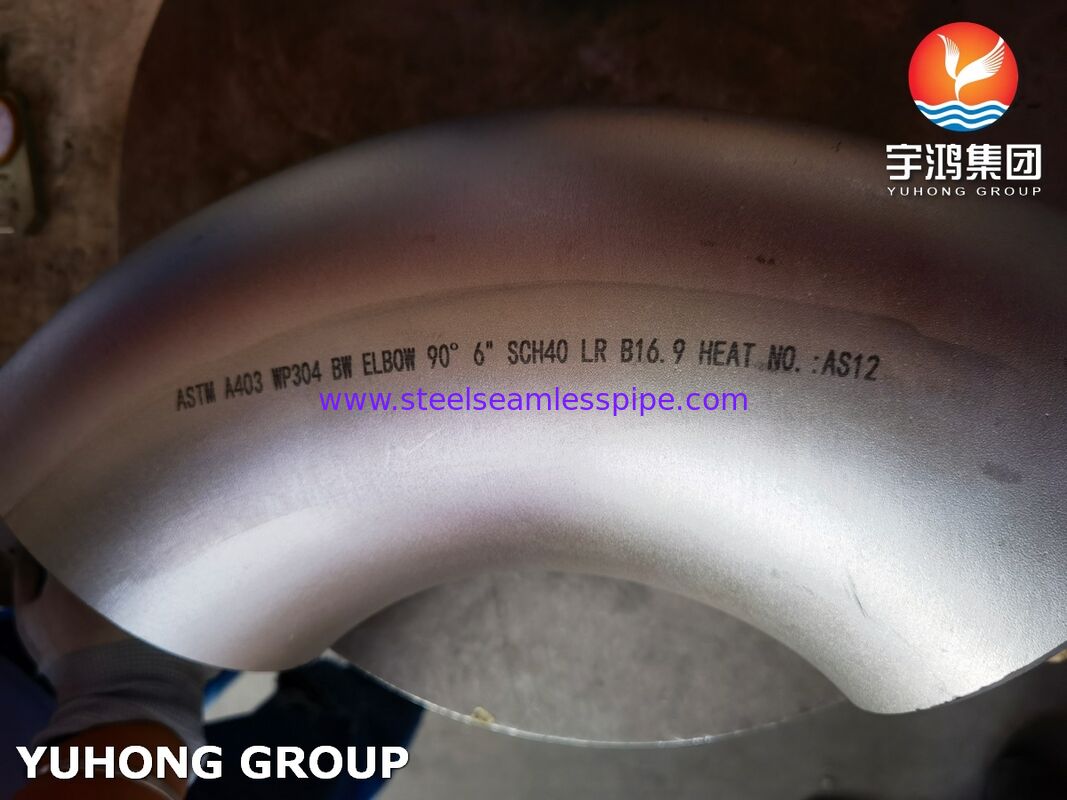

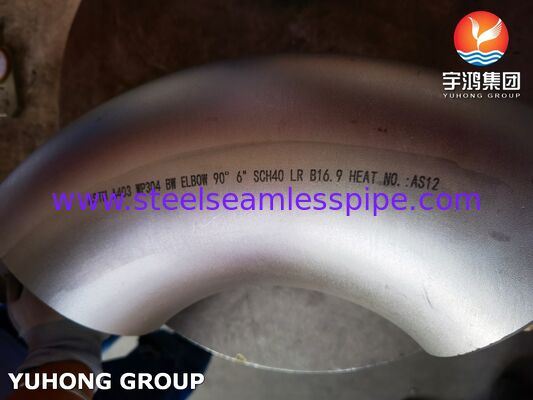

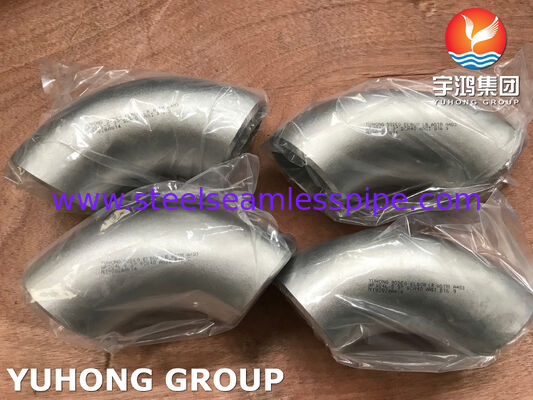

This product is a Stainless Steel Butt Weld Elbow, manufactured to the highest industry standards for pressure piping systems. It is designed to change the direction of pipeline flow at a 90-degree angle, ensuring a secure, leak-proof connection when welded directly to pipes of matching size and material.

The elbow conforms to two critical standards:

Material & Manufacturing Standard: ASTM A403/A403M (2022 edition). This standard governs wrought austenitic stainless steel fittings for pressure piping applications. The prefix "WP" indicates that the fitting conforms to ASME dimensional and pressure rating standards.
Dimensional Standard: ASME B16.9. This standard defines the precise factory-made dimensions, tolerances, and ratings for butt-welding fittings, ensuring perfect compatibility and interchangeability within piping systems.

The dual-grade marking WP304/304L signifies that the chemical composition and mechanical properties of the fitting meet the requirements for both 304 and 304L stainless steel grades.

Material: Austenitic Stainless Steel

The elbow is made from wrought austenitic stainless steel, known for its excellent corrosion resistance, good formability, and durability. The "WP304L" designation corresponds to the unified numbering system (UNS) code S30403.

Chemical Composition

The key difference between 304 and 304L grades is the controlled lower carbon content in 304L, which minimizes carbide precipitation during welding and enhances resistance to intergranular corrosion. The chemical composition ranges are as follows:

Element	Grade 304	Grade 304L
Carbon (C)	≤ 0.08%	≤ 0.03%
Chromium (Cr)	18.0 - 20.0%	18.0 - 20.0%
Nickel (Ni)	8.0 - 11%	8.0 - 12.0%
Manganese (Mn)	≤ 2.0%	≤ 2.0%
Silicon (Si)	≤ 1.0%	≤ 1.0%
Phosphorus (P)	≤ 0.045%	≤ 0.045%
Sulfur (S)	≤ 0.03%	≤ 0.03%

Mechanical Properties

The fitting meets the minimum mechanical property requirements as stipulated by the ASTM A403 standard.

Property	Grade 304	Grade 304L
Tensile Strength	≥ 75 ksi (515 MPa)	≥ 70 ksi (485 MPa)
Yield Strength (0.2% Offset)	≥ 30 ksi (205 MPa)	≥ 25 ksi (170 MPa)
Elongation	-	≥ 40%

Applications

This stainless steel elbow is suitable for a wide range of applications due to its corrosion resistance and strength, including:

Chemical & Petrochemical Processing: Handling corrosive fluids and gases.
Food & Beverage and Pharmaceutical Industries: Where hygiene and cleanability are paramount.
Oil & Gas and Power Generation: For various process and service piping.
General Industrial Piping Systems: In applications requiring durable and reliable pipe connections.
