Bright Surface ASME SB163 N04400 Nickel-Copper Alloy Heat Exchanger U Bend Tube

Datos del producto:

Lugar de origen:	Porcelana
Nombre de la marca:	YUHONG
Certificación:	ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Número de modelo:	ASME SB163 N04400

Pago y Envío Términos:

Cantidad de orden mínima:	1000KGS
Precio:	Negociable
Detalles de empaquetado:	Cajones de madera de capas (con marcos de acero), ambos extremos con tapas de plástico
Tiempo de entrega:	Depende de la cantidad
Condiciones de pago:	,LC/C,T/T
Capacidad de la fuente:	Según los requisitos de los clientes

Contacto

Todos los productos

Tubo sin costura de acero inoxidable (322)

Tubo inconsútil de acero inoxidable (315)

Tubería de acero inoxidable a dos caras (134)

Tubo de acero inoxidable del duplex (36)

Tubo de aguja (147)

Tubo de aleta (686)

intercambiador de calor (22)

tubo del cambiador de calor (453)

Envase de tubos para intercambiadores de calor (46)

Cambiador de calor Tubesheet (122)

bafle del cambiador de calor (39)

Frío de aire (9)

Contenedor de presión (4)

tubo soldado con autógena de acero inoxidable (58)

Tubo soldado con autógena del acero inoxidable (125)

Tubo de la aleación de níquel (270)

Tubo de la aleación de níquel (95)

Tubo de la aleación de cobre (247)

Tubo del acero de aleación (207)

Tubo del titanio (17)

tubo recocido brillante (167)

Tubo de caldera (151)

colocación de acero (838)

Reborde de acero (631)

Las demás (404)

Partes de revestimiento (8)

Descripción detallada del producto

Nombre del producto:	Tubo curvado en U de aleación de níquel y cobre	Especificación y material:	ASME SB163 N04400
Fin:	Extremo de Bevled, extremo llano, extremo de hilo	Superficie:	Recocido brillante, pulido, decapado
Tipo:	Sin costura/ soldado	END:	Y, UT, HT, PINTA
solicitud:	Intercambiadores de calor, sistemas de calderas, aplicaciones marinas, procesamiento químico, indust
Resaltar:	ASME SB163 nickel-copper alloy tube , N04400 heat exchanger U bend , bright surface heat exchanger tube

YUHONG brand goods have been already exported to more than 85 countries With more than 35 years' experience, because of strict quality control policy, excellent sales service, delivery on time. YUHONG won more and more new clients and got more and more repeat orders from old clients, in YUHONG People's mind: Quality is First Important!

Bright Surface ASME SB163 N04400 Nickel-Copper Alloy Heat Exchanger U Bend Tube

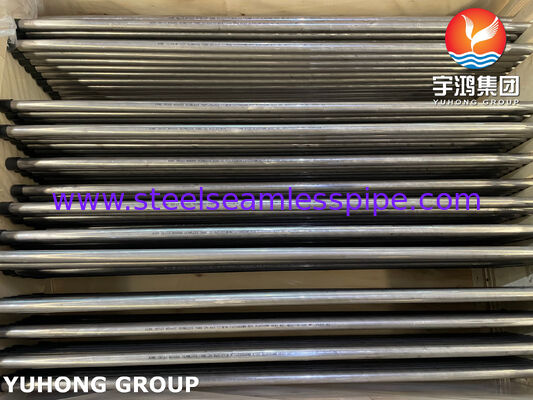

This product is a U-bend tube fabricated from N04400 nickel-copper alloy (Monel 400) as specified by the ASME SB163 standard, featuring a bright surface finish. Its defining characteristic is the cold-bending process that forms straight tubing into a precise U-shaped bend, while retaining the material's inherent excellent corrosion resistance and mechanical properties. It is designed for high-reliability and space-efficient heat exchange and fluid conveyance systems.

Material: N04400 (UNS N04400) Nickel-Copper Alloy, commonly known as Monel 400. It is a nickel (approx. 63-70%) and copper (approx. 28-34%) based, solid-solution strengthened alloy renowned for its exceptional resistance to a wide range of corrosive environments, including seawater, acidic, and alkaline solutions.

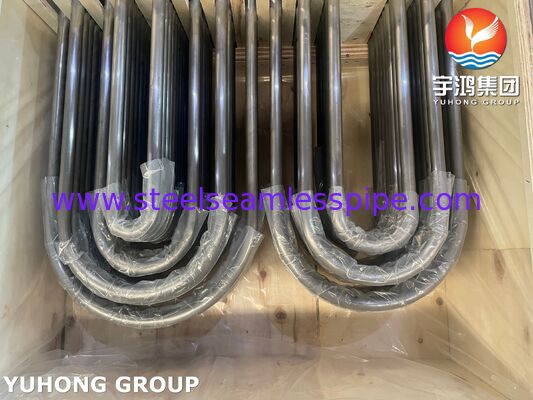

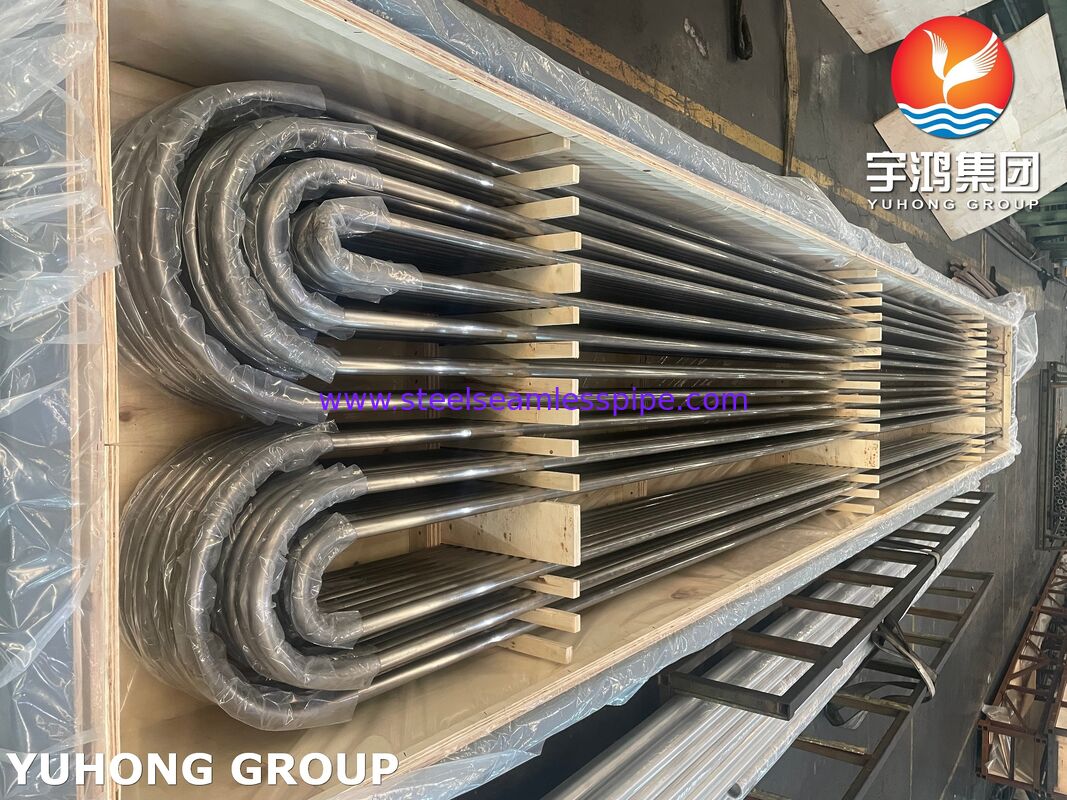

U-Bend Tube:Refers to straight tubing that has been formed (typically by cold bending) into a 180-degree U-shape with a specific bend radius (R).

STANDARD	WERKSTOFF NR.	UNS	JIS	BS	GOST	AFNOR	EN
Monel 400	2.4360	N04400	NW 4400	NA 13	МНЖМц 28-2,5-1,5	NU-30M	NiCu30Fe

Bright Surface ASME SB163 N04400 Nickel-Copper Alloy Heat Exchanger U Bend Tube 0

1.Chemical & Mechanical Properties

ASME SB163 MONEL 400 Chemical Composition (%)
C	Mn	Si	S	Cu	Fe	Ni
≤0.30%	≤2.00%	≤0.50%	≤0.24%	28.0%-34.0%	≤2.50%	≥63.00%

Mechanical Properties

Condition

Tensile Strength

min, ksi (MPa)

Yield Strength(0.2 % Offset) min, ksi (MPa)

Elongation in 2 in.or 50 mm (or 4 D)min, %

Rockwell Hardness

Annealed

70(483)

28(193)

...

Stress-relieved

85(586)

55(379)

B75max

Available Size Range

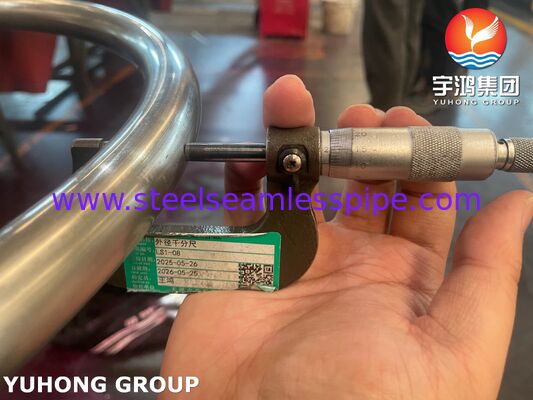

Outer Diameter (OD): Common range from 9.53mm (3/8") to 25.4mm (1"), other sizes available upon request.

Wall Thickness (WT): Common range from 0.8mm to 2.5mm (corresponding to different ODs).

U-Bend Radius (R): Customized according to customer design and tube bundle layout.

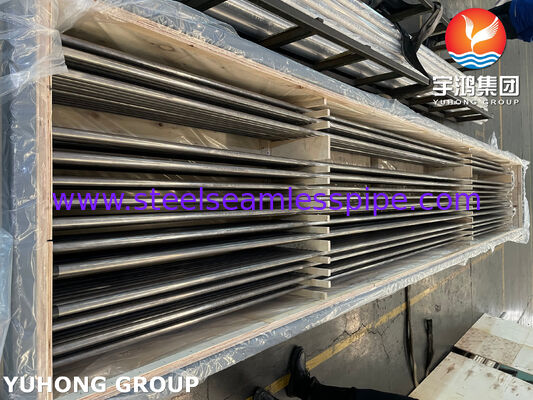

Straight Leg Length: Precisely cut as per customer drawings.

2. Key Advantages

Corrosion Resistance: Monel 400 is highly resistant to corrosion in seawater and many acidic environments. This makes it ideal for applications in chemical processing, marine engineering, and oil and gas extraction.
Mechanical Properties: The alloy maintains good mechanical properties at both elevated and sub-zero temperatures, making it suitable for a variety of temperatures in applications.
Weldability: Monel 400 can be welded using most standard processes, although proper techniques should be employed to prevent cracking.
Non-Magnetic: Monel 400 is non-magnetic, making it useful in applications where magnetic permeability is a concern.

3. Key Applications

Marine engineering.
Chemical and hydrocarbon processing equipment.
Gasoline and freshwater tanks.
Crude petroleum stills.
De-aerating heaters.
Boiler feed water heaters and other heat exchangers.
Valves, pumps, shafts, fittings, and fasteners.
Industrial heat exchangers.
Chlorinated solvents.
Crude oil distillation towers.

Bright Surface ASME SB163 N04400 Nickel-Copper Alloy Heat Exchanger U Bend Tube 1
