Shell and Tube Heat Exchanger--- Your Reliable, Efficient Built for Industy

Datos del producto:

Lugar de origen:	Porcelana
Nombre de la marca:	Yuhong
Certificación:	ASME U Stamped NB PED
Número de modelo:	Intercambiador de calor de carcasa y tubo

Pago y Envío Términos:

Cantidad de orden mínima:	1 juego
Precio:	Negotaible
Detalles de empaquetado:	paquete digno del mar
Tiempo de entrega:	30 a 180 días
Condiciones de pago:	LC, T/T
Capacidad de la fuente:	año de 3000 sistemas

Contacto

Todos los productos

Tubo sin costura de acero inoxidable (332)

Tubo inconsútil de acero inoxidable (324)

Tubería de acero inoxidable a dos caras (134)

Tubo de acero inoxidable del duplex (37)

Tubo de aguja (158)

Tubo de aleta (705)

intercambiador de calor (31)

tubo del cambiador de calor (459)

Envase de tubos para intercambiadores de calor (49)

Cambiador de calor Tubesheet (125)

bafle del cambiador de calor (39)

Frío de aire (11)

Contenedor de presión (4)

tubo soldado con autógena de acero inoxidable (61)

Tubo soldado con autógena del acero inoxidable (132)

Tubo de la aleación de níquel (273)

Tubo de la aleación de níquel (103)

Tubo de la aleación de cobre (250)

Tubo del acero de aleación (210)

Tubo del titanio (20)

tubo recocido brillante (172)

Tubo de caldera (152)

colocación de acero (862)

Reborde de acero (660)

Las demás (406)

Partes de revestimiento (8)

Descripción detallada del producto

Aplicaciones:	Industria del petróleo y del gas	Solicitud:	Petróleo y gas, productos químicos, procesamiento de alimentos, construcción

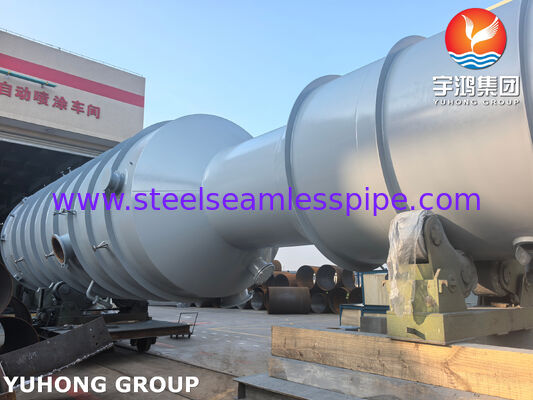

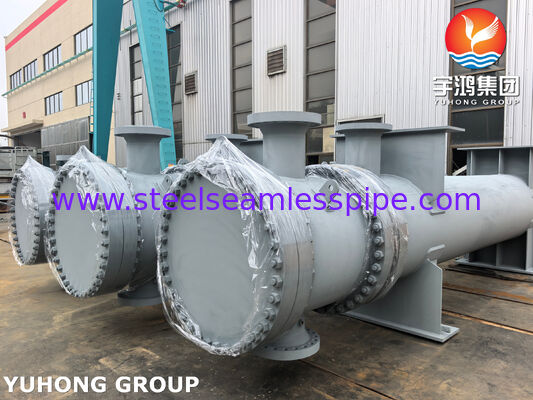

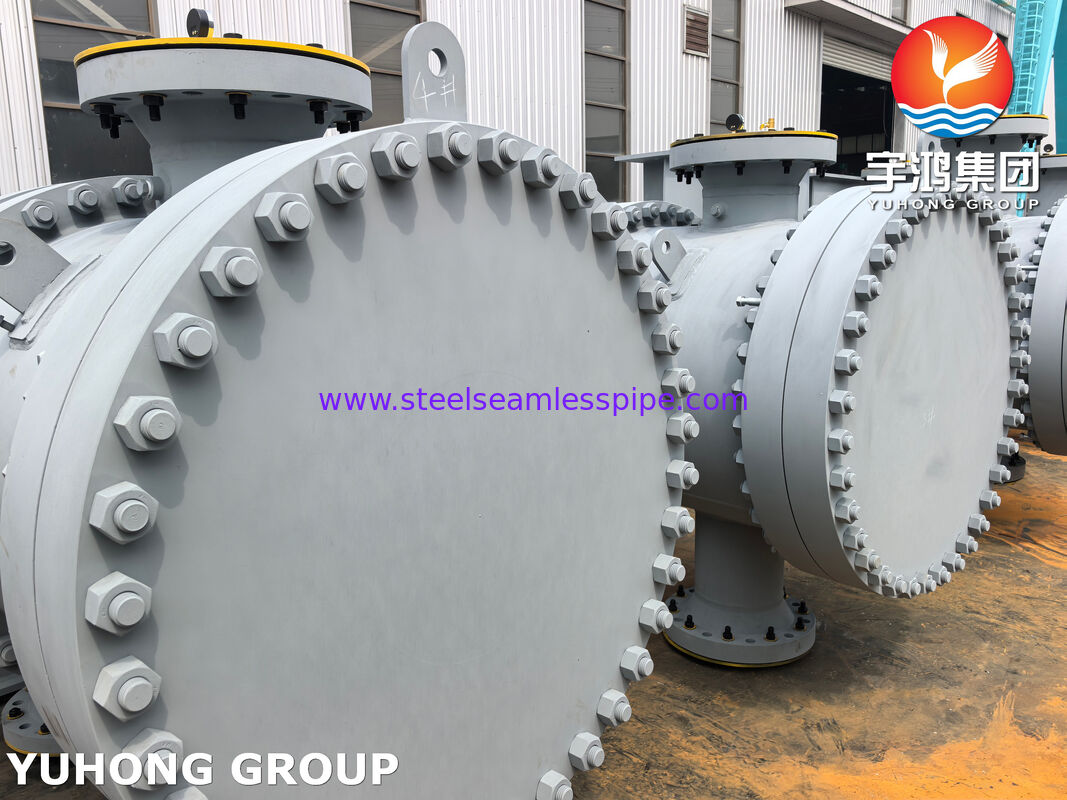

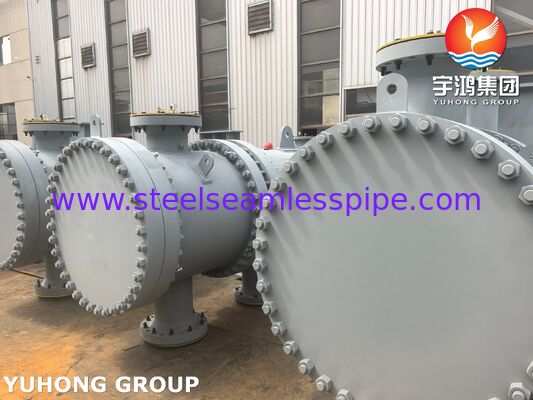

Shell and Tube Heat Exchanger

Reliable. Efficient. Built for Industry.

Product Overview

Our Shell and Tube Heat Exchangers are engineered for high-performance heat transfer in demanding industrial environments. Designed in accordance with international standards (ASME, TEMA, GB/T 151), they provide robust, long-lasting solutions for heating, cooling, condensation, and evaporation processes.

Whether you are in chemical processing, oil & gas, power generation, HVAC, or food production, our heat exchangers deliver consistent thermal efficiency under extreme temperatures and pressures.

Key Features

Feature	Benefit
Heavy-duty construction	Withstands high pressure (up to 30+ MPa) and high temperature (up to 600°C)
Flexible design options	Fixed tube sheet, floating head, and U-tube types to suit various thermal and cleaning requirements
High thermal efficiency	Optimized baffle spacing and tube arrangement (triangular or square pitch) for maximum heat transfer
Corrosion-resistant materials	Available in carbon steel, stainless steel, titanium, and special alloys for aggressive fluids
Easy maintenance	Removable tube bundle options for mechanical cleaning and inspection

Available Configurations

Type	Best For
Fixed Tube Sheet	Low temperature difference, clean fluids on shell side
Floating Head	Large temperature differences, dirty fluids requiring regular cleaning
U-Tube	High temperature / high pressure, thermal expansion concerns

Typical Applications

Oil & Gas - Crude oil heating, gas cooling, refinery condensers
Chemical & Petrochemical - Reactor cooling, solvent recovery, acid heating
Power Plants - Feedwater preheating, turbine exhaust condensation
HVAC & Refrigeration - Chiller evaporators and condensers
Pharmaceutical & Food - Sterilization, pasteurization, and clean-in-place (CIP) systems

Technical Specifications (Typical Range)

Parameter	Value
Heat transfer area	1 m² - 2,500+ m²
Shell diameter	100 mm - 2,500 mm
Tube length	1.5 m - 12 m
Tube outer diameter	12 mm - 51 mm
Design pressure	Vacuum - 35 MPa
Design temperature	-50°C - 600°C

Custom designs are available for specific process conditions.

Why Choose Our Shell and Tube Heat Exchangers?

Our heat exchangers combine robust engineering with flexible design options to meet your specific industrial requirements. With proven performance across multiple industries and compliance with international standards, we deliver reliable thermal solutions that stand up to the most demanding operating conditions.
