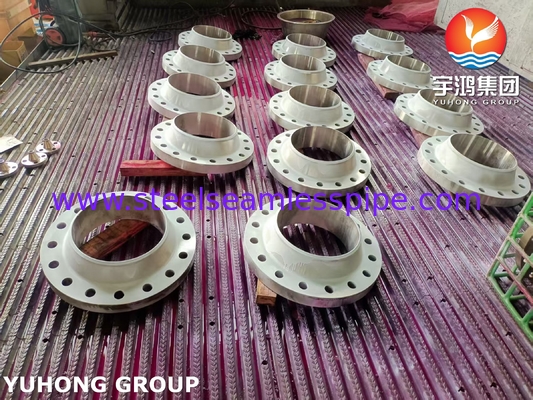

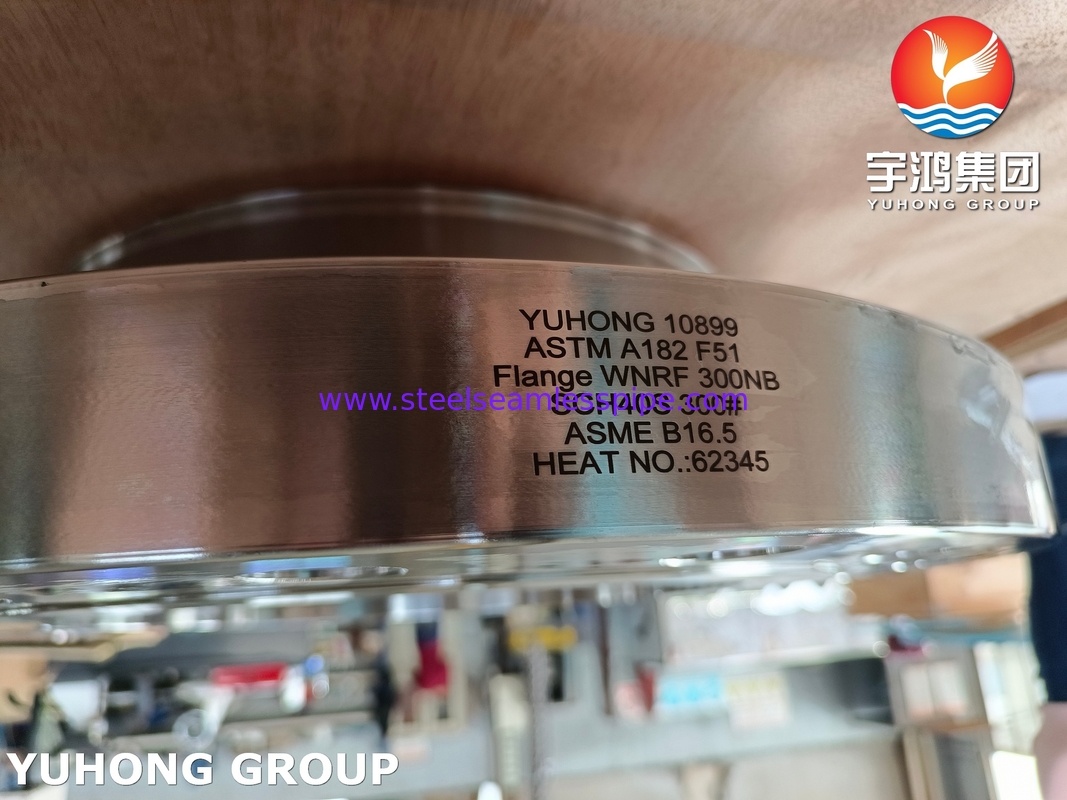

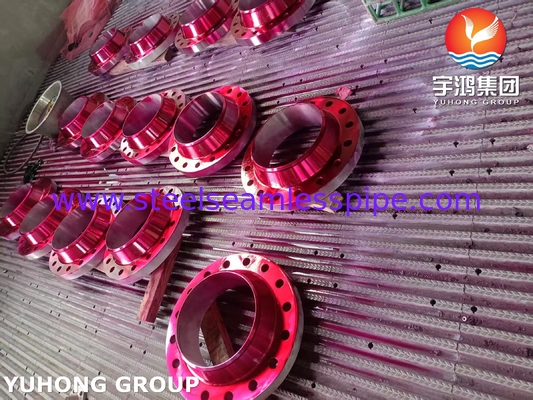

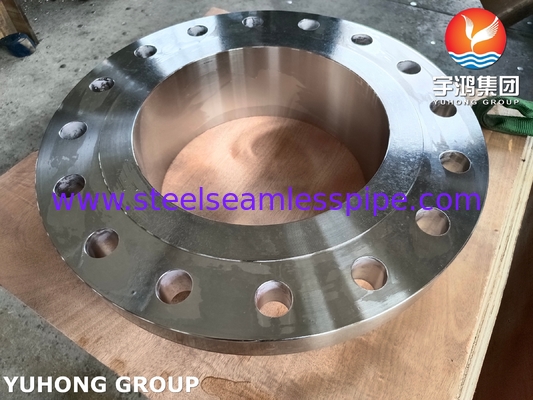

ASTM A182 F51 Duplex Stainless Steel Flange B16.5 for Industrial Pipeline

Datos del producto:

Lugar de origen:	Porcelana
Nombre de la marca:	YUHONG
Certificación:	ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015
Número de modelo:	ASTM A182 F51

Pago y Envío Términos:

Cantidad de orden mínima:	1 por ciento
Precio:	Negociable
Detalles de empaquetado:	Paquete con gorra de plástico/estuche de madera
Tiempo de entrega:	7 días
Condiciones de pago:	L/C, T/T

Contacto

Todos los productos

Tubo sin costura de acero inoxidable (290)

Tubo inconsútil de acero inoxidable (277)

Tubería de acero inoxidable a dos caras (127)

Tubo de acero inoxidable del duplex (29)

Tubo de aguja (107)

Tubo de aleta (631)

intercambiador de calor (17)

tubo del cambiador de calor (424)

Envase de tubos para intercambiadores de calor (37)

Cambiador de calor Tubesheet (116)

bafle del cambiador de calor (36)

Frío de aire (8)

Contenedor de presión (4)

tubo soldado con autógena de acero inoxidable (57)

Tubo soldado con autógena del acero inoxidable (114)

Tubo de la aleación de níquel (261)

Tubo de la aleación de níquel (79)

Tubo de la aleación de cobre (227)

Tubo del acero de aleación (184)

Tubo del titanio (10)

tubo recocido brillante (153)

Tubo de caldera (145)

colocación de acero (804)

Reborde de acero (590)

Las demás (391)

Partes de revestimiento (7)

Descripción detallada del producto

Nombre del producto:	Reborde de acero inoxidable del duplex	Estándar:	ASTM A182
Material:	F51	NDT:	PT/UT
Tipo de brida:	Wn, entonces, BL, SW, Spectacle, LJP, Orinfice	Embalaje:	Paquete con gorra de plástico/estuche de madera
Solicitud:	Industria de Petróleo y Gas/Química/Sistema de Enfriamiento/Industria de Pulpa y Papel
Resaltar:	ASTM A182 F51 duplex steel flange , B16.5 stainless steel flange , industrial pipeline steel flange

ASTM A182 F51 Duplex Stainless Steel Flange B16.5 for Industrial Pipeline

ASTM A182 specification covers forged low alloy and stainless steel piping fittings used in pressure systems, including flanges, fittings, valves, and similar parts that conform to specified dimensions or size standards. And it covers various grades of low-alloy steels as well as ferritic, martensitic, austenitic, and ferritic austenitic stainless steels. F51 is a duplex steel material grade code under the ASTM A182 standard. The more common common name is 2205 duplex steel, which comes from its typical chemical composition ratio of about 22% chromium and 5% nickel.

ASTM A182 F51 Duplex Stainless Steel Flange Heat Treatment

GRA.	UNS GRA.	Tensile Strength, min, ksi [MPa]	Yield Strength, min, ksi [MPa]B	Elongation in 2 in. [50 mm] or 4D, min, %
F51	S31803	90 [620]	60 [450]	25

ASTM A182 F51 Duplex Stainless Steel Flange Advantages

High strength
Excellent resistance to stress corrosion cracking (SCC)
Good corrosion resistance
Good weldability
Good toughness

ASTM A182 Duplex Stainless Steel Flange Chemical Composition

GRA.	CHEMICAL COMPOSITION % MAXIMUM
GRA.	C	MN	P	S	SI	CR	NI	MO	CU	N
F51	0.03	2.0	0.030	0.02	1.0	21.0-23.0	4.5-6.5	2.5-3.5	---	0.08-0.20
F53	0.03	1.2	0.035	0.02	0.8	24.0-26.0	6.0-8.0	3.0-5.0	0.5	0.24-0.32
F55	0.03	1.0	0.030	0.01	1.0	24.0-26.0	6.0-8.0	3.0-4.0	0.5-1.0	0.20-0.30

Nondestructive Testing and Quality Control for ASTM A182 F51 Duplex Stainless Steel Flanges

1.Liquid Penetrant Testing: This is almost mandatory and is used to detect surface defects in critical areas such as the flange sealing surface and grooves. Linear defects on the sealing surface are not permitted.

2.Ultrasonic Testing: Ultrasonic Testing (UT) is required for large or high-pressure flanges to detect internal defects.

3.Corrosion Testing: Intergranular corrosion testing is typically required to ensure proper heat treatment and the absence of chromium carbide precipitation.

4.Ferrite Content Measurement: A ferrite meter is used to ensure the ferrite content is within the ideal range of 35-55% to verify the effectiveness of the heat treatment.

5.Material Verification: A spectrometer is used to verify that the chemical composition meets the standard.

ASTM A182 F51 Duplex Stainless Steel Flange Main Application Areas

Oil and Gas Industry: Offshore platform equipment, oil and gas pipelines, and purification equipment.
Chemical and Petrochemical Industry: Reaction vessels, heat exchangers, and piping systems for transporting various acidic media.
Seawater and Brine Treatment: Desalination plants and ship piping systems.
Energy and Environmental Protection: Wastewater treatment equipment.
Pulp and Paper Industry: Containers and piping for handling corrosive chemicals.
